Highlight:
low frequency handheld vibration monitor
, 1hz handheld vibration monitor
, 10khz vibration meter
Display: |
3 1/2 LCD Digital Display, Sampling Per Second |
Holding Function: |
Included |
True RMS Measurement: |
Included |
Amplitude Ranges: |
Displacement 19.99 Mm Eq. Peak-peak Velocity 199.9 Mm/s True RMS Acceleration 199.9 M/s2 Eq. Peak High Frequency Acceleration: 199.9 M/s2 (or 20 G) Eq. Peak |
Frequency Response & Accuracy: |
Displacement: 4~200Hz(5%); 2.5~500Hz(10%); 1~1000Hz(3dB) Velocity: 4~1000Hz(5%); 2.5~1000Hz(10%); 1~2000Hz(3dB) Acceleration: 4~1000Hz(5%); 2.5~5000Hz(10%); 1~10000Hz(3dB) High Frequency Acceleration: 1000-5000Hz 10%; 5kHz~ |
Battery: |
9V 6F22/Rechargeable, 25/10 Hours Of Continuous Operation |
Transducer: |
Accelerometer With Handheld Probe And/or Magnetic Mount |
Size: |
13x6x2.3 Cm |
Weight: |
250g |
Product Name: |
Vibration Testers |

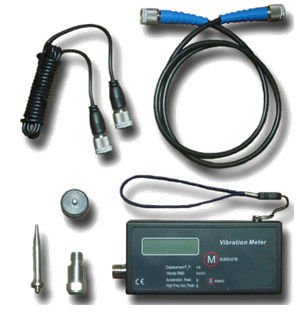

Low Frequency 1Hz-10kHz Vibration Displacement Handheld Vibration Monitor HGS-908L
Features:
• Measuring vibration for low rotation speed machine such as Hydro Turbine, Wind Turbine, Rotary Kiln & Building
• Small size, transducer included,
• Battery powered, external accelerometer
• One button control both power and measurement. Very easy to use.
• 3 1/2 LCD digital display, sampling per second.
• Holding function.
• Automatic power off.
• True RMS measurement.
• Optional Intrinsically safe version
Main application:
• Suitable for monitoring machinery vibration caused by imbalance, misalignment, gear & bearing faults and construction vibration
Specifications:
• Amplitude Ranges:
Displacement 19.99 mm Eq. peak-peak
Velocity 199.9 mm/s true RMS
Acceleration 199.9 m/s2 Eq. Peak
High Frequency Acceleration: 199.9 m/s2 (or 20 g) Eq. Peak
• Temperature range: 0 - 50°C
• Frequency response & Accuracy:
Displacement: 4~200Hz(±5%); 2.5~500Hz(±10%); 1~1000Hz(3dB)
Velocity: 4~1000Hz(±5%); 2.5~1000Hz(±10%); 1~2000Hz(3dB)
Acceleration: 4~1000Hz(±5%); 2.5~5000Hz(±10%); 1~10000Hz(3dB)
High Frequency Acceleration: 1000-5000Hz ±10%; 5kHz~10kHz(3dB)
• Battery: 9V 6F22/Rechargeable, 25/10 hours of continuous operation.
• Pickup: Accelerometer with handheld probe and/or magnetic mount
• Dimensions: 13x6x2.3 cm; Weight: 250 g
• Optional Intrinsically safe version
