HSM-1C 5L Metallographic Mounting Press Quick Curing Of Mounting Resin

Product Details

Place of Origin: Beijing

Brand Name: HUATEC

Certification: ISO, CE, GOST

Model Number: HSM-1C

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Packaging Details: Standard export package

Delivery Time: 5days

Payment Terms: T/T, Paypal, Western Union

Supply Ability: 500pcs per month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                5l metallographic mounting press, huatec metallographic mounting press, gost metallographic mounting press


Ppressure Vessel:	Stainless Steel	Mounting Type:	Cold Mounting
Mounting Way:	Pressure	Pressure Of Work:	0.2mpa
Pressure Cooker Volume:	5L	Size:	300 * 400 * 300 Mm
Net Weight:	8kgs	Name:	Stainless Steel Cold Mounting Pressure Cooker

Ppressure Vessel:	Stainless Steel
Mounting Type:	Cold Mounting
Mounting Way:	Pressure
Pressure Of Work:	0.2mpa
Pressure Cooker Volume:	5L
Size:	300 * 400 * 300 Mm
Net Weight:	8kgs
Name:	Stainless Steel Cold Mounting Pressure Cooker

Product Description

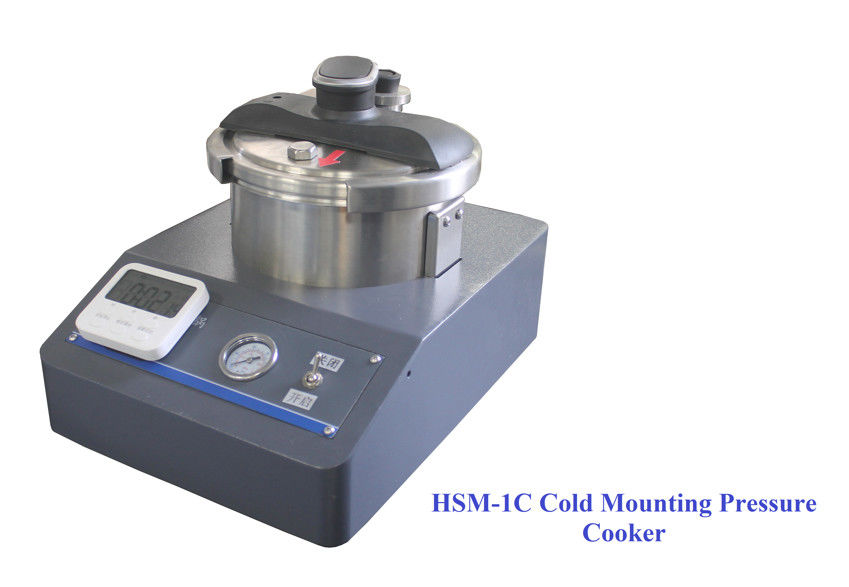

HUATEC HSM-1C Quick Curing Of Mounting Resin Stainless Steel Cold Mounting Pressure Cooker

Cold Mounting pressure cooker is a special metallographic mounting equipment designed to meet the special requirements of quick curing of mounting resin.Using this equipment, without changing the physical and chemical properties of the resin, the bubbles and pores in the mounting samples can be greatly reduced, which provides the best effect for the grinding and microstructure analysis of the subsequent samples.

Product introduction:

Unique design, safer products.

When there is pressure in the pot, the lid is automatically locked, when working, the lid cannot be opened;
When the pressure exceeds 10% of the working pressure, the pressure relief valve at the top of the pot cover automatically relieves the pressure immediately.

The pressure vessel is made of stainless steel and has a large inner cavity capacity, which can handle more than 20 samples with a diameter of 30mm at the same time.
The operation is simple, the control switch ventilate pressure upward and relieve pressure downward.

HSM-1C 5L Metallographic Mounting Press Quick Curing Of Mounting Resin 0

Technical parameters:

Item	specifications
Mounting type	Cold mounting
Mounting way	Under pressure
Pressure of work	0.2 mpa
Safety pressure	0.22 mpa
Maximum pressure of air source	0.6 mpa
Pressure cooker volume	5L
Overall dimensions	300 * 400 * 300 mm
Weight	8Kg

Standard Accessory:

Item

Quantity

Item

Quantity

Pressure cooker

High-pressure tracheal

Timer

Manual and Certification

certificate of qualification

Each 1

Option: Pump
