xProduct Details
| Frequency | 2-15Mhz | Probe Size | 4mm-20mm |
|---|---|---|---|
| Highlight | olympus ultrasonic thickness probes,thickness olympus ultrasonic probes,HUATEC Ultrasonic Thickness Probes |
||
Product Description

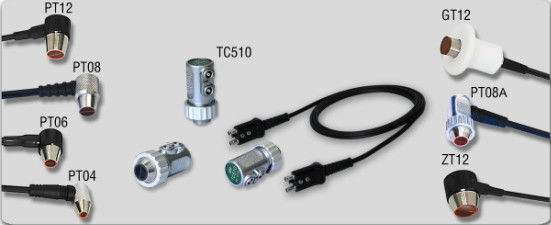

Olympus Ultrasonic Probes Ultrasonic Thickness Probes Ultrasonic Thickness Probe
| ACCESSORIES | |||
| Product | Type | Description | |
| The Tranducers for Ultrasonic Thickness Guage | TC510 | 5MHz,Split-transducer Measurement Range:0.8-275mm | |
| PT-08 | 5MHz,Measurement Range:1.0-100mm | ||
| PT-12 | 5MHz,Measurement Range:1.0-150mm | ||
| PT-06 | Small tube,7.5MHz,Measurement Range:0.8-30mm | ||
| PT-04 | Fingertip,10MHz,Measurement Range:0.7-12mm | ||
| ZT-12 | Cast iron,2MHz,Measurement Range:4.0-508mm | ||
| GT-12 | High-Temperature, -20℃-480℃5MHz,Measurement Range:4.0-80mm | ||
| D15A | 15MHz,used for testing the accurate thickness.15MHZ. Single Crystal Delay Tranducer | ||
| TC550 | 5MHz,10mm, Measurement Range:0.8-275mm composite crystal | ||
| TC210 | 2MHz,Measurement Range:1-400mm | ||
| TC110 | 1MHz,Measurement Range:1-400mm | ||
| TC705 | 10MHz, Measurement Range: 0.6mm-80mm | ||
| Single Crystal Delay Line L5-C5 | used for the probe of the gauge. | ||
| Other Accessories for the Ultrasonic Thickness Gauge | Rubber Sheath(1) | Suitable for TG-4000B/TG-4100B/TG-4000/TG-4100/TG-3230 | |
| Rubber Sheath(2) | Suitable for TG-4500 series & TG-5000 series | ||
| 4 step test blocks | mm/inch;1018 Steel and 304 Stainless steel 3mm / 5mm / 10mm / 15 mm, 0.100" 0.200" 0.400" 0.600", 0.250" 0.500" 0.750" 1.000" | ||
| 5 step test blocks/ pipe step blocks | mm/inch 1018 Steel and 304 Stainless steel, 5mm /10mm /15mm /20mm /25mm, 5mm /10mm /15mm /20mm /25mm, 0.100" 0.200" 0.300" 0.400" 0.500, pipe step block:2.5mm / 5mm / 10mm / 15mm / 20mm | ||
| 6 step test blocks | mm 1018 Steel and 304 Stainless steel , 1mm 3mm 5mm 10mm 15mm 20mm, 2.5mm 5mm 10mm 15mm 20mm 25mm | ||
| 8 step test blocks | mm 1018 Steel,304 Stainless steel,Aluminum | ||
| 10 step test blocks | mm/inch 1018 Steel and 304 Stainless steel, 1mm 2mm 3mm 4mm 5mm 6mm 7mm 8mm 9mm 10mm, 2mm 4mm 6mm 8mm 10mm 12mm 14mm 16mm 18mm 20mm, 0.100" 0.200" 0.300" 0.400" 0.500" 0.600" 0.700" 0.800" 0.900" 1.000" | ||
| Test block Case | Carrying Case Size:170*70*50mm | ||
| Test block Case | Carrying Case Size:180*95*60mm | ||
| Test block Case | Carrying Case Size:120*45*55mm | ||
| Test block Case | Carrying Case Size:120*45*55mm | ||
Ultrasonic thickness gauge probe can be made as customer request, can equip with most of international brand thickness gauge
