xProduct Details
| Operating Principle | ULTRASONIC | Measuring Range | 1.2-225mm, 0.05-9inch |
|---|---|---|---|
| Sound Velocity | 500-9000m/s | Display | 4digits LCD With EL Backlight |
| Dimensions | 120x62x30mm | Weight | 164g |
| Highlight | digital ultrasonic thickness gauge,through coating thickness gauge |
||
Product Description
Application:

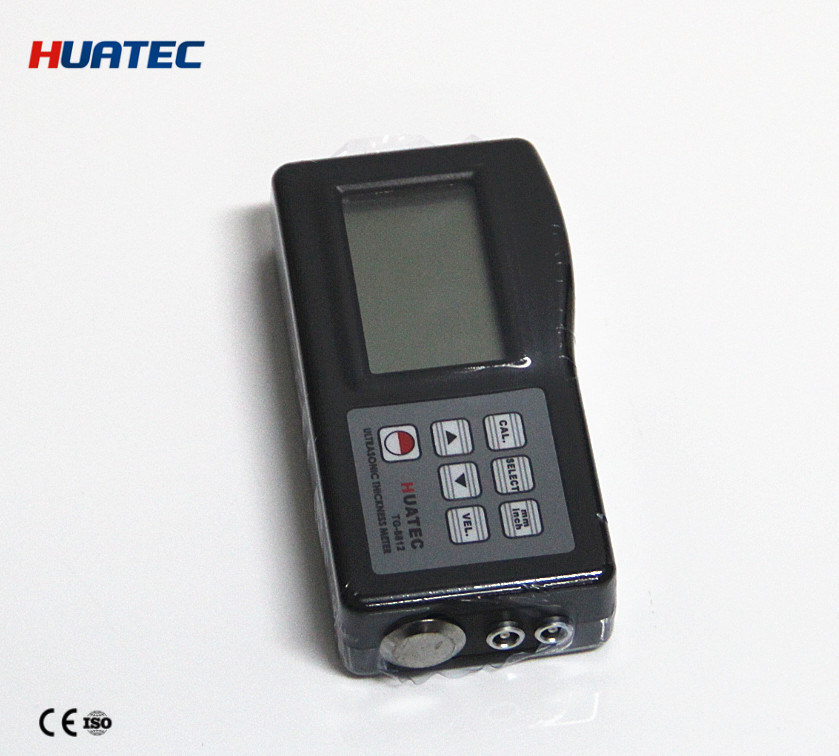

TG8812 can be used for measuring thickness and corrosion of pressure vessels, chemical equipment, boilers, oil storage tanks, etc. In industries of petroleum, shipbuilding, power station and machine manufacturing.
Description:
Measuring range (metric/imperial): 1.2-225mm, 0.05-9inch
Operating principle: ULTRASONIC
Materials measured: any hard materials, including steel, cast iron, aluminum, red copper, brass, zinc, quartz glass, polyethylene, PVC, gray cast iron, nodular cast iron and other materials
Sound velocity: 500-9000m/s
Lower limit steel pipes: ф15x2.0mm, ф20x3.0mm determined by the transducer
Calibration block: included
Display: 4digits LCD with EL backlight
Display: 4digits LCD with EL backlight
Resolution: 0.1mm
Accuracy: ±(0.5%H+0.1)
Power supply: 4x1.5V AA(UM-3)battery
Battery indicator: low battery indicator
Operating conditions:0-+45℃(32℉-104℉), ≤90%RH
Dimensions: 120x62x30mm
Weight: 164g (not including battery)
Standard Delivery:
Main unit 1
5M Φ10 Transducer 1
Couplant 1
Carrying case 1
Instruction manual 1
5M Φ10 Transducer 1
Couplant 1
Carrying case 1
Instruction manual 1
Optional Accessories
1. 6M Φ6mm thin material probe:
measuring range (steel): 1-50mm Operating temperature:-10-+60℃
2. 5M Φ12mm high temperature probe:
measuring range (steel):4-100mm Operating temperature:-10-+300℃
3. Cable and Software for RS232C interface
Packaging and Shipping
Packaging: Standard export package, wooden case
Delivery: 5-10 days upon receipt of payment,depending on order quantity
Shipping: Can be shipped by sea, air or other means per request.
Our Services:
Warranty: One year
After sales service and maintenance: Lifelong
