Metal And Alloy Articles Hardness Measurement / Ultrasonic Hardness Tester HUH-2
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Color | Black | Principle | Ultrasonic And Dynamic |
|---|---|---|---|
| Standard | JBT 9377-2010、ASTM A1038-2005 | Calibration | Slef Calibration |
| Memory | 1000 Datas | ||
| Highlight | hardness testing machine,metal hardness tester |
||
Product Description

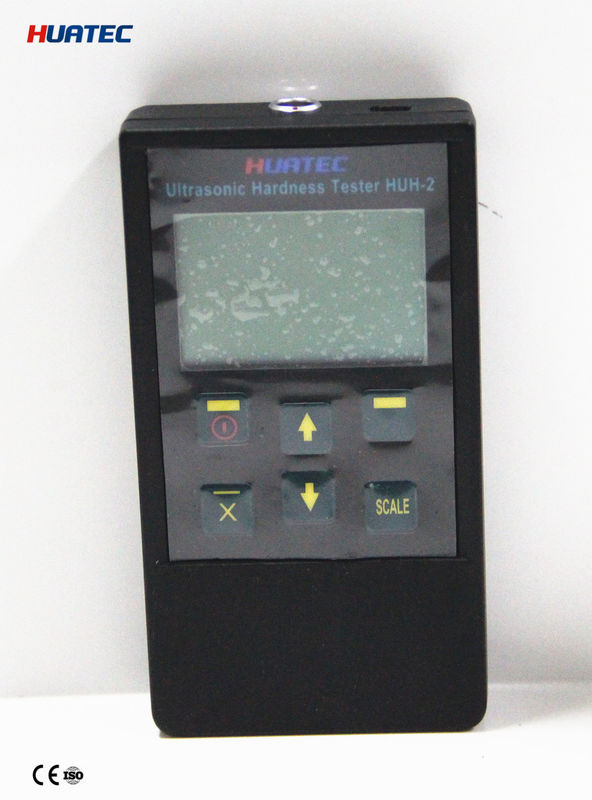

Small / Large Metal and Alloy Articles Hardness Measuring Tester, Ultrasonic Portable Hardness Tester HUH-2
Product information:
It is intended for measuring hardness of metal and alloy articles with Rockwell, Brinell, Vickers. It consists of the dynamic transducer (sensor) and the electronic module.
The principle of tester operation is based on determination of frequency change in free oscillation of the indenter (an acoustic resonator with Vickers diamond pyramid) subjected to the constant force of 50 N.
Advantages:
- Measuring hardness of both small and large articles
- Measuring hardness of complexly shaped articles, with hard to reach places, in various spatial positions
- Convenience and ease of use
- PC-connectable via RS-232C interface
- High measuring performance
- Power source discharge indication and display illumination
- Graphical display with lighting
- Storing 1000 hardness measurements in the nonvolatile memory
- Supply of reference blocks on request
HUH-2 Main technical parameters:
|
Hardness measurement ranges Rockwell Scale Tensile strength, MPa |
20 - 70 90 - 450 230 - 940 370 - 1740 |
|
Relative measurement error Rockwell Scale |
± 1 ± 3% ± 3% |
|
Chief dimensions, mm |
120x60 x25 |
|
Category temperature range° C |
-5 - +40 |
|
Power supply |
2 AA Rechargeable batteries |
|
Time of continuous work hours, not less |
100 Hours |
|
Weight of electronic module with sensor, kg |
0.9 |
Parameters for Ultrasonic hardness probe and Leeb hardness probe
| Ultrasonic hardness probe | Leeb hardness probe | |
| Length | 160mm | 140mm |
| Diameter | 25mm | 25mm |
| Indention depth | 30μm | 300 μm |
| Test force | 14.7N | 11Nm |
| Probe testing life | 200,000 times | 50,000 times |
| Min.testing thickness (steel) | 1mm | 12mm |
| Min. testing radius | 5mm | 10mm |
| Max.surface roughness | Ra 2.5 μm | Ra 3.2 μm |
| Data memory | 1000 datas | 100 datas |
| Tesing time | 4 second | 2 second |
Standard delivery
- Hardness tester 1pc
- Ultrasonic hardness probe 50N(optional probe 10Nand 100N) 1pc
- Leeb hardness probe 1pc (HUH-2 only)
- Instruction manual 1pc
- Probe cable 1pc
- Battery charger 1pc
- Carrying case 1pc
- Calibration certificate 1pc
- Hardness block 2pcs
