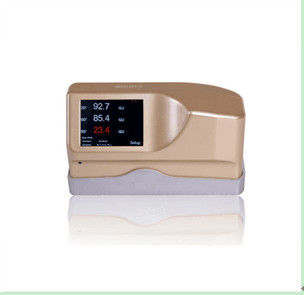

Precision Intelligent Glossmeter From Matt To High Gloss Measurements

Brand Name:	HUATEC
Model Number:	1503
MOQ:	1pcs
Packaging Details:	Standard export package
Payment Terms:	T/T, Paypal, Western Union

Detail Information

Product Description

ratings& Reviews

Detail Information

Place of Origin:

Beijing

Certification:

ISO, CE, GOST

Angle:

20°, 60°, 85°

Measurement Range:

0-2000GU

Repeatability:

±0.2(0-199.9GU), ±0.2%(200-2000GU)

Reproducibility:

±0.5(0-199.9GU), ±0.5%(200-2000GU)

Precision:

Measuring Area(mm):

10x10 (20°), 9x15(60°), 5x38(85°)

Display Resolution:

320 X 240

Control:

Touch Screen With One Key Measurement

Data Port:

USB & Blue Tooth

Basic Mode:

3000 Batches

Statistics Mode:

3000 Batches

Continuous Mode:

1000 Batches

Supply Ability:

500pcs per month

Highlight:

gloss measurement

digital gloss

Product Description

Intelligent Glossmeter

Product Introduction: Wide range of applications from matt to high gloss measurements, with advanced touch screen technology and ideal for production and laboratory.

Precision Intelligent Glossmeter From Matt To High Gloss Measurements 0

Introduction:
This portable intelligent glossmeter has a wide range of applications from matt to high gloss measurements, with advanced touch screen technology and ideal for production and laboratory.
Samples can be measured separately at each angle or at 2 or 3 angles simultaneously and effectively processed using the powerful built-in software.

Technical Specification:
◆Angle: 20°, 60°, 85°
◆Measurement range: 0-2000GU
◆Repeatability: ±0.2(0-199.9GU), ±0.2%(200-2000GU);
◆Reproducibility: ±0.5(0-199.9GU), ±0.5%(200-2000GU);
◆Precision: 1GU
◆Measuring area(mm): 10x10 (20°), 9x15(60°), 5x38(85°)
◆Display resolution: 320 x 240
◆Control: Touch screen with one key measurement
◆Memory: Basic mode: 3000 batches
Statistics mode: 3000 batches
Continuous mode: 1000 batches
◆Data port: USB & blue tooth

Features:
◆Automatic calibration integrated in protective holder.
◆Touch screen with one button measurement
◆Display reading, statistics and calibration procedure on colorful touch screen
◆One second to complete automatic calibration
◆Memory up to 16000 x 3 readings
◆Multi- languages menu available
◆Built-in battery with USB port
◆Transfer data to PC via USB cable, more extended functions
◆Blue tooth connection
◆Real-time to view measurement data via mobile phone

Standard:
ISO 2813, ASTM D523, DIN 67530

Order Information:
1503 Intelligent Tri-Glossmeter ( 20°/60°/85°)
1503/1 Intelligent Glossmeter (20°)
1503/2 Intelligent Glossmeter (60°)
1503/3 Intelligent Glossmeter (85°)
