xProduct Details
| Light Source | Vertical Illumination Light Source | Eyepiece | 10X Dia. 6mm |
|---|---|---|---|
| Objective | 10X, 20X,50X | Total Magnification | 100X-500X |
| Focusing Range： | 25mm | Mechanical Tube Length： | 160mm |
| Weight | N.W.: 0.75kg G.W.: 0.9kg | TDimension | Instrument Dimension: 230X110X70（mm） |
| Power Supply | 3.6v | Product Name | Portable Metallurgical Microscope |
| Highlight | vertical illumination portable metallurgical microscope,metal hardness testing portable metallurgical microscope |
||
Product Description

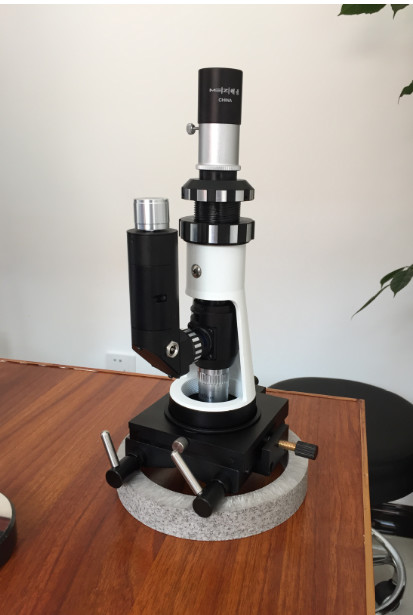

Vertical Illumination Portable Metallurgical Microscope For Metal Hardness Testing Machine
Product Description:
HSC-500 Portable Metallurgical Microscopes has vertical illumination light source.
Applicable to metallographic inspection of various work pieces which is large or unable to make sample.
No need to cut sampling and can directly grinding and polishing, in order to ensure the integrity of the work piece.
This machine can identify different metal and alloy organization structure.
Widely used in Casting quality appraisal, raw material inspection or organization analysis after handling the materials by factory, laboratory.
Main Parameters:
| No. | Item | Specification |
| 1 | Eyepiece | WF10X/ф6 |
| 2 | Objective | 10X, 20X,50X |
| 3 | Total Magnification | 100X-500X |
| 4 | Focusing range: | 25mm |
| 5 | Mechanical tube length: | 160mm |
| 6 | Power supply | 3.6v |
| 7 | Weight | N.W.: 0.75kg G.W.: 0.9kg |
| 8 | Dimension | Instrument dimension: 230X110X70(mm) |
Standard configuration:
| No. | Item | Main Specification | Unit | Quantity |
| 1 | Main unit | HSC-500 | Set | 1 |
| 2 | Objective | 10X, 40X,50X (optional) | Piece | 1 each |
| 3 | Eyepiece | 10X | Piece | 1 |
| 4 |
Illuminator |
Installed on the main body | Piece | 1 |
| 5 | Battery charger | Piece | 1 | |
| 6 | Magnetic base | Piece | 1 | |
| 7 | C mount adapter | Piece | 1 | |
| 8 | Instruction manual | Piece | 1 | |
| 9 | Calibration certificate | Piece | 1 |
Optional parts:
Eyepiece: 12.5X
Objective: 50X
