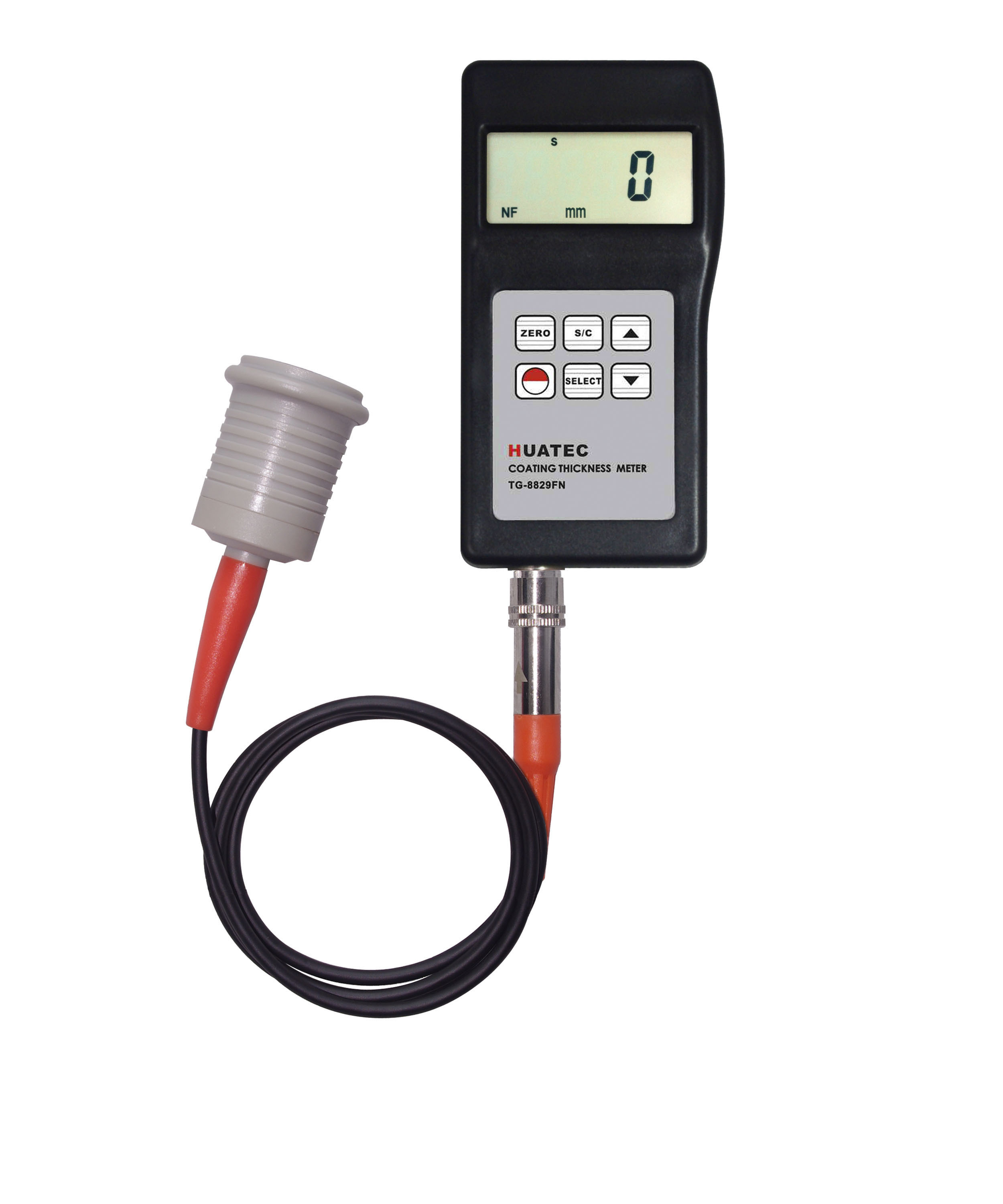

TG8829F 12 mm / 12000micron Coating Thickness Gauge

  • TG8829F 12 mm / 12000micron Coating Thickness Gauge
  • TG8829F 12 mm / 12000micron Coating Thickness Gauge
Place of Origin Beijing
Brand Name HUATEC
Certification ISO, CE, GOST
Model Number TG8829F
Minimum Order Quantity 1pcs
Packaging Details Standard export package
Delivery Time 1-4days
Payment Terms T/T, Paypal, Western Union
Supply Ability 500pcs per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Measuring Range 0-12000um Resolution 0.1/1
Accuracy ±1-3%n Or ±2.5um Battery Indicator Low Battery Indicator
Unit Metric / Imperial: Convertible Power Off Auto Power Off
Min. Sample Thickness 0.3mm
Highlight

oating thickness tester

,

digital thickness gauge
Leave a Message
Product Description
12 mm Coating Thickness Gauge TG8829F for non conductive coating layers


TG8829F 12 mm / 12000micron Coating Thickness Gauge 0
Description:
With separate probe(s)
Function: TG-8829F (ferrous substrate)
Operating principle: magnetic induction
Measuring range:0-12000um/
Resolution; 0.1/1
Accuracy: ±1-3%n or ±2.5um
Min. measuring area: 30mm
Min. sample thickness: 0.3mm
Battery indicator: low battery indicator
Metric/ imperial: convertible
Power supply: 4x1.5V AAA(UM-4)battery
Auto power off
Operating conditions:0-+45℃(32℉-104℉), ≤90%RH
Dimensions: 126x65x27mm
weight: 81g(not including battery)
Optional accessories: other range 0-200um to 15000um



Application:
1. TG-8829F can measure the thickness of non-magnetic coating layers (aluminum, chrome, copper, ename1, rubber, paint) on magnetic substrate (steel, iron, alloy and magnetic stainless steel)




Standard Delivery of TG8829F:
Main unit(1250um)                        1
F type probe                                      1
F calibration base set                    1
Calibration foil set                         1set (4 foils)
Carrying case                                   1
Instruction manual                       1

Optional Accessories
Cable and software for RS-232C

Customized testing range
