Place of Origin Beijing
Brand Name HUATEC
Certification ISO, CE, GOST
Model Number HFD
Minimum Order Quantity 1pcs
Packaging Details Standard export package
Delivery Time 1-4days
Payment Terms T/T, Paypal, Western Union
Supply Ability 500pcs per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Zinc Alloy Angle 0-90degres
Connector Lemo 00 Lemo 01 BNC Microdot Frequency 0.5Mhz-10MHz
Highlight

ultrasonic flaw detectors

,

ultrasonic flaw detection
Leave a Message
Product Description

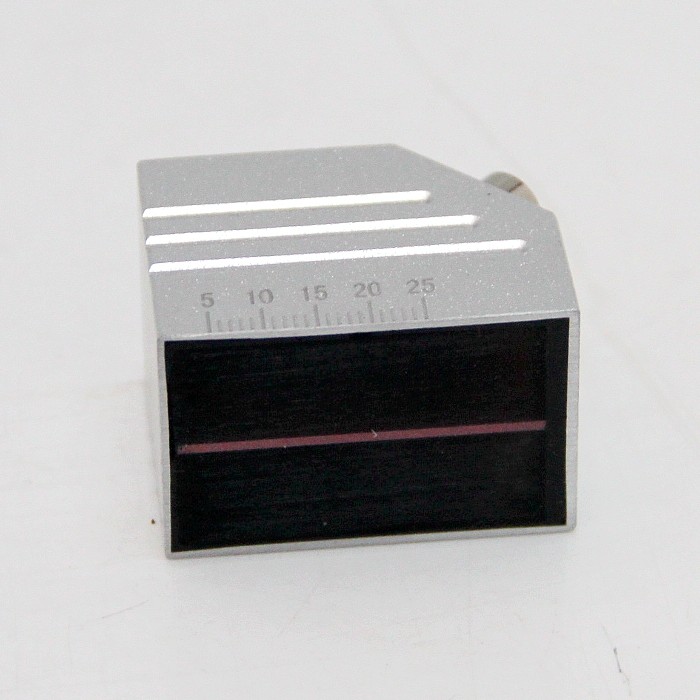

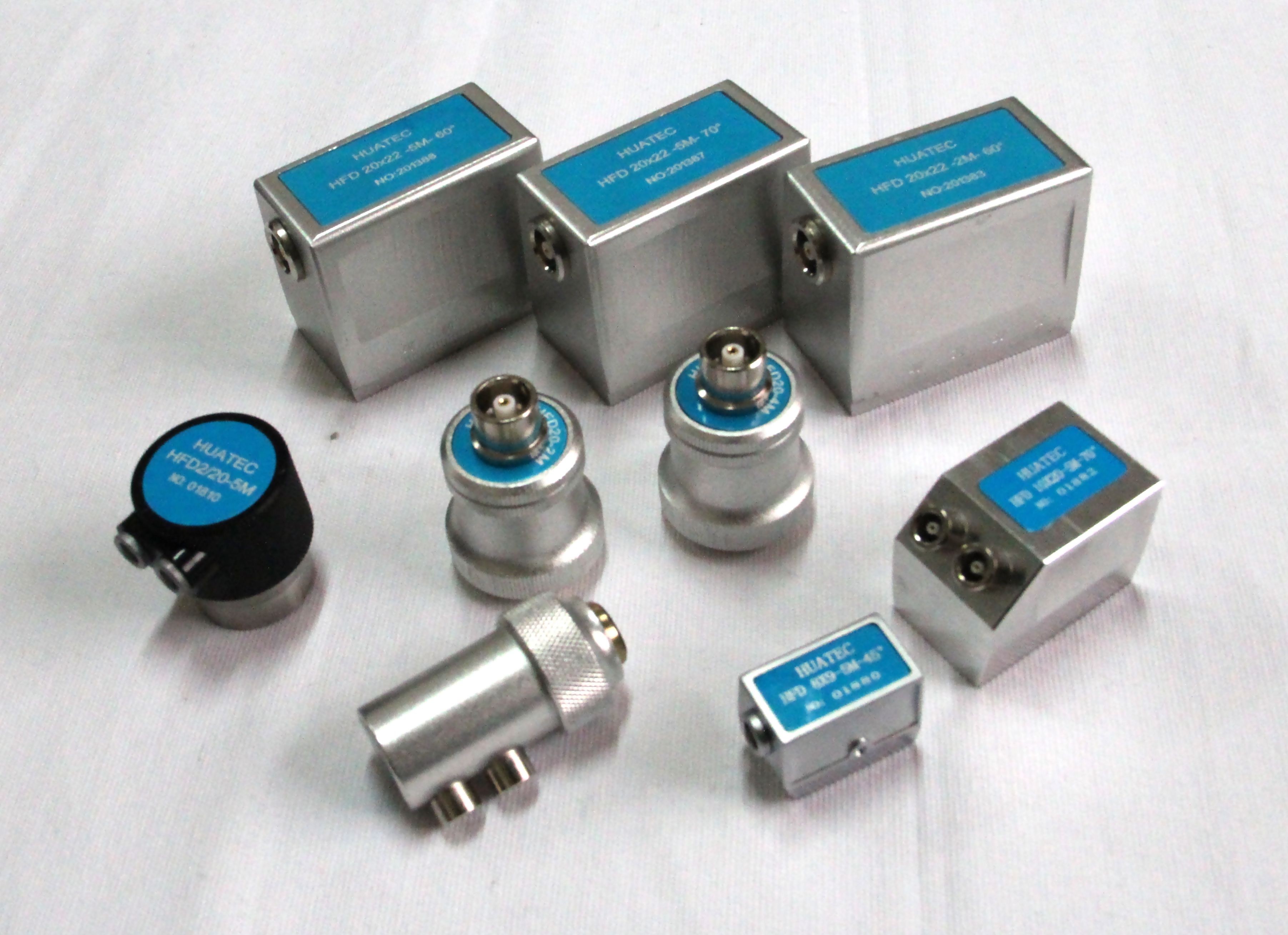

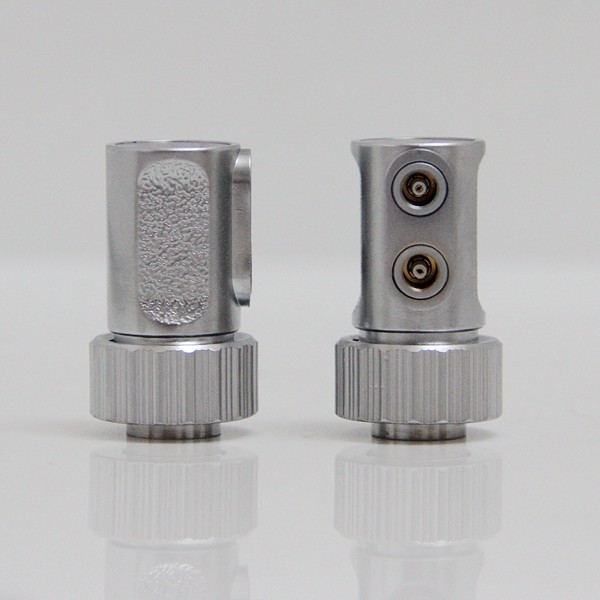

Straight / Angle Beam Probe UT probe UT transducer Ultrasonic Transducer Probe



We offer all kinds of ultrasonic transducer as customer request with different element and composite material.



Ultrasonic Transducer

Probe type
Designation
Angle
Transducer element size [mm]
Frequency [MHz]
Straight / Angle Beam Probe UT probe UT transducer Ultrasonic Transducer Probe 0

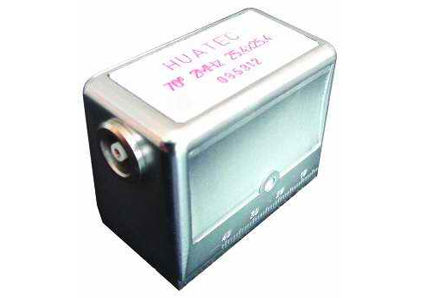

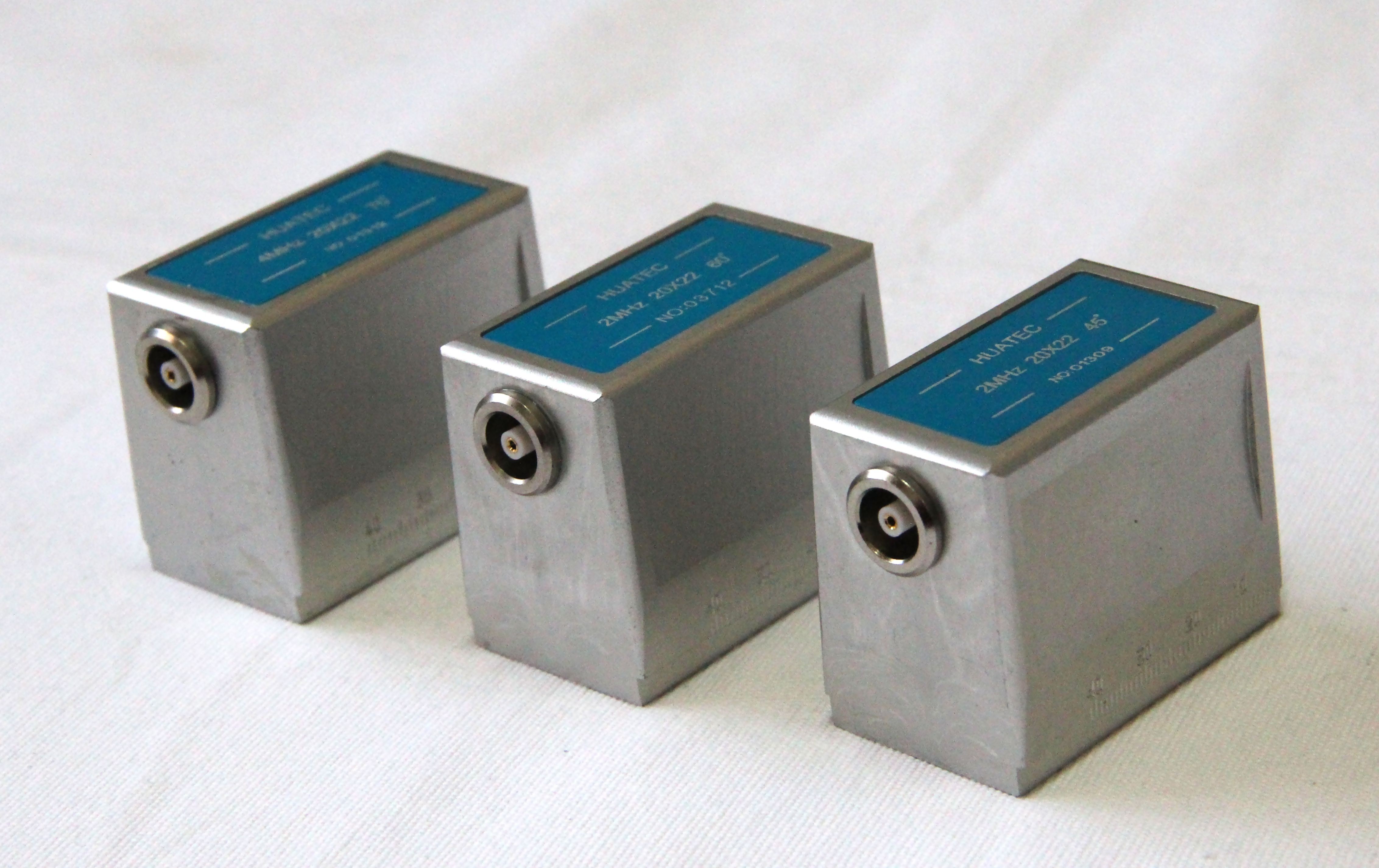

angle probe

HFD 9x8-2M-35
35°
8x9
2 MHz
HFD 9x8-2M-45
45°
8x9
2 MHz
HFD 9x8-2M-60
60°
8x9
2 MHz
HFD 9x8-2M-70
70°
8x9
2 MHz
HFD 9x8-2M-80
80°
8x9
2 MHz
HFD 9x8-4M-35
35°
8x9
4 MHz
HFD 9x8-4M-45
45°
8x9
4 MHz
HFD 9x8-4M-60
60°
8x9
4 MHz
HFD 9x8-4M-70
70°
8x9
4 MHz
HFD 9x8-4M-80
80°
8x9
4 MHz


















angle probe






HFD 22x20-2M-35
35°
20x22
2 MHz
HFD 22x20-2M-45
45°
20x22
2 MHz
HFD 22x20-2M-60
60°
20x22
2 MHz
HFD 22x20-2M-70
70°
20x22
2 MHz
HFD 22x20-2M-80
80°
20x22
2 MHz
HFD 22x20-4M-35
35°
20x22
4 MHz
HFD 22x20-4M-45
45°
20x22
4 MHz
HFD 22x20-4M-60
60°
20x22
4 MHz
HFD 22x20-4M-70
70°
20x22
4 MHz
HFD 22x20-4M-80
80°
20x22
4 MHz

Probe type
Designation
Transducer element* diameter[mm]
Frequency[MHz]

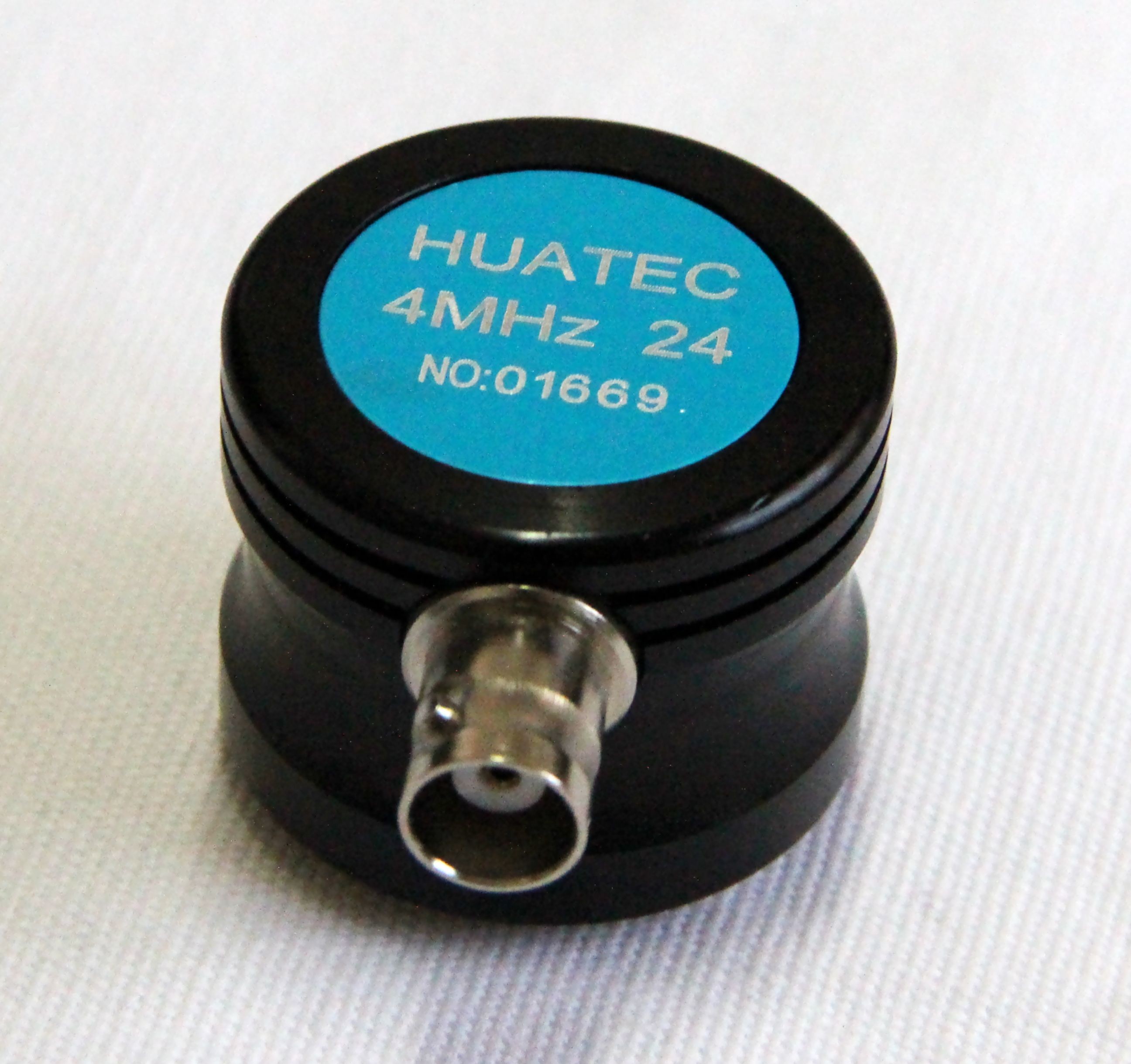

Standard straight probe


Straight / Angle Beam Probe UT probe UT transducer Ultrasonic Transducer Probe 1
HFD 10-2M
Ø 10
2 MHz
HFD 10-4M
Ø 10
4 MHz
HFD 10-6M
Ø 10
6 MHz
HFD 20-2M
Ø 20
2 MHz
HFD 20-4M
Ø 20
4 MHz
HFD 20-6M
Ø 20
6 MHz

Probe type
Designation
Transducer element* diameter[mm]
Frequency[MHz]

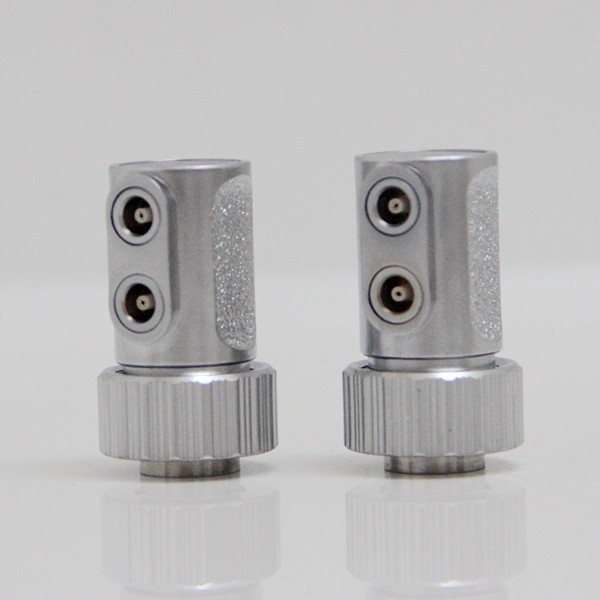

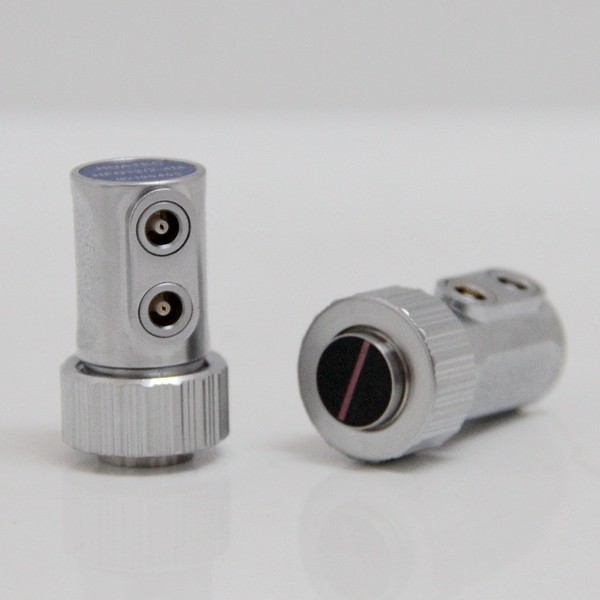

Dual straight probe




Straight / Angle Beam Probe UT probe UT transducer Ultrasonic Transducer Probe 2


PQ 2/10-2M
Ø 10
2 MHz
PQ 2/10-4M
Ø 10
4 MHz
PQ 2/10-6M
Ø 10
6 MHz
PQ 2/20-2M
Ø 20
2 MHz
PQ 2/20-4M
Ø 20
4 MHz
PQ 2/20-6M
Ø 20
6 MHz

Probe type
Designation
Angle
Transducer element* diameter[mm]
Frequency[MHz]
Straight / Angle Beam Probe UT probe UT transducer Ultrasonic Transducer Probe 3

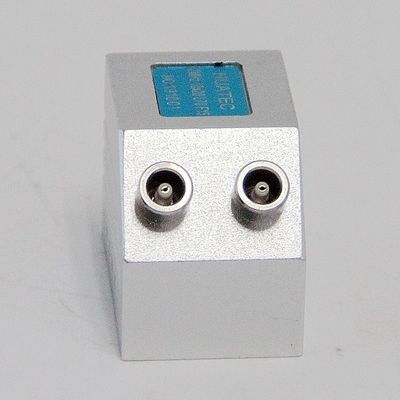

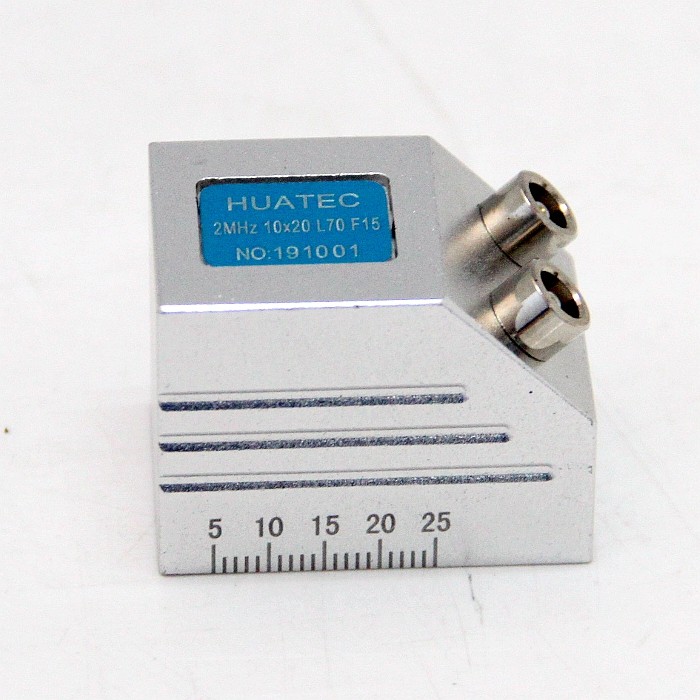

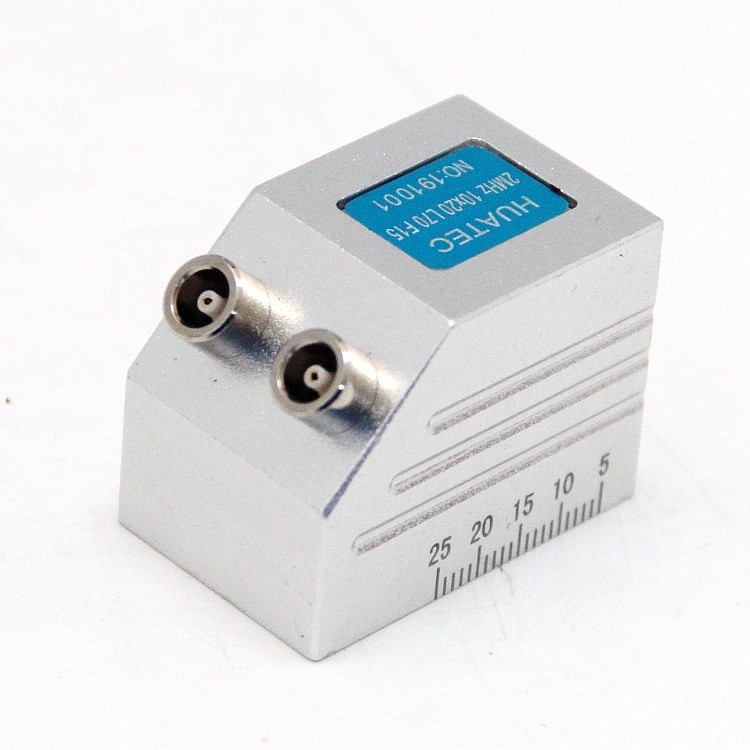

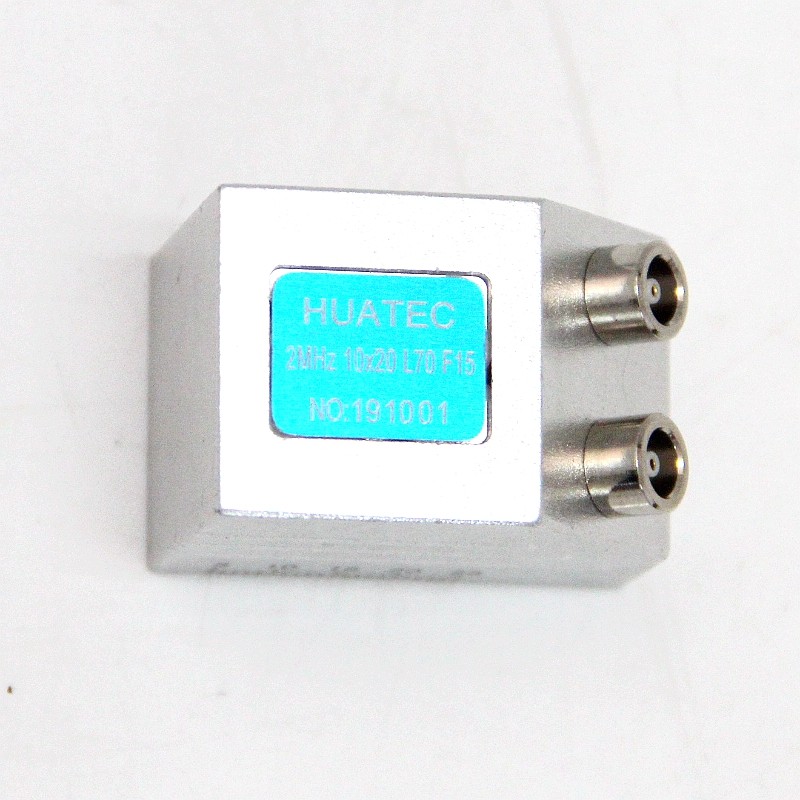

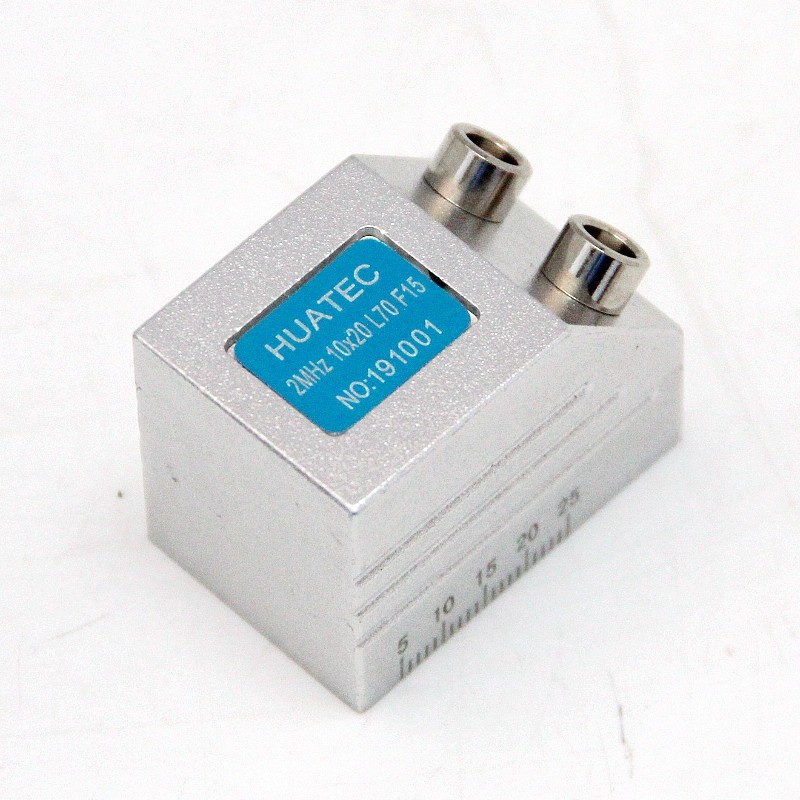

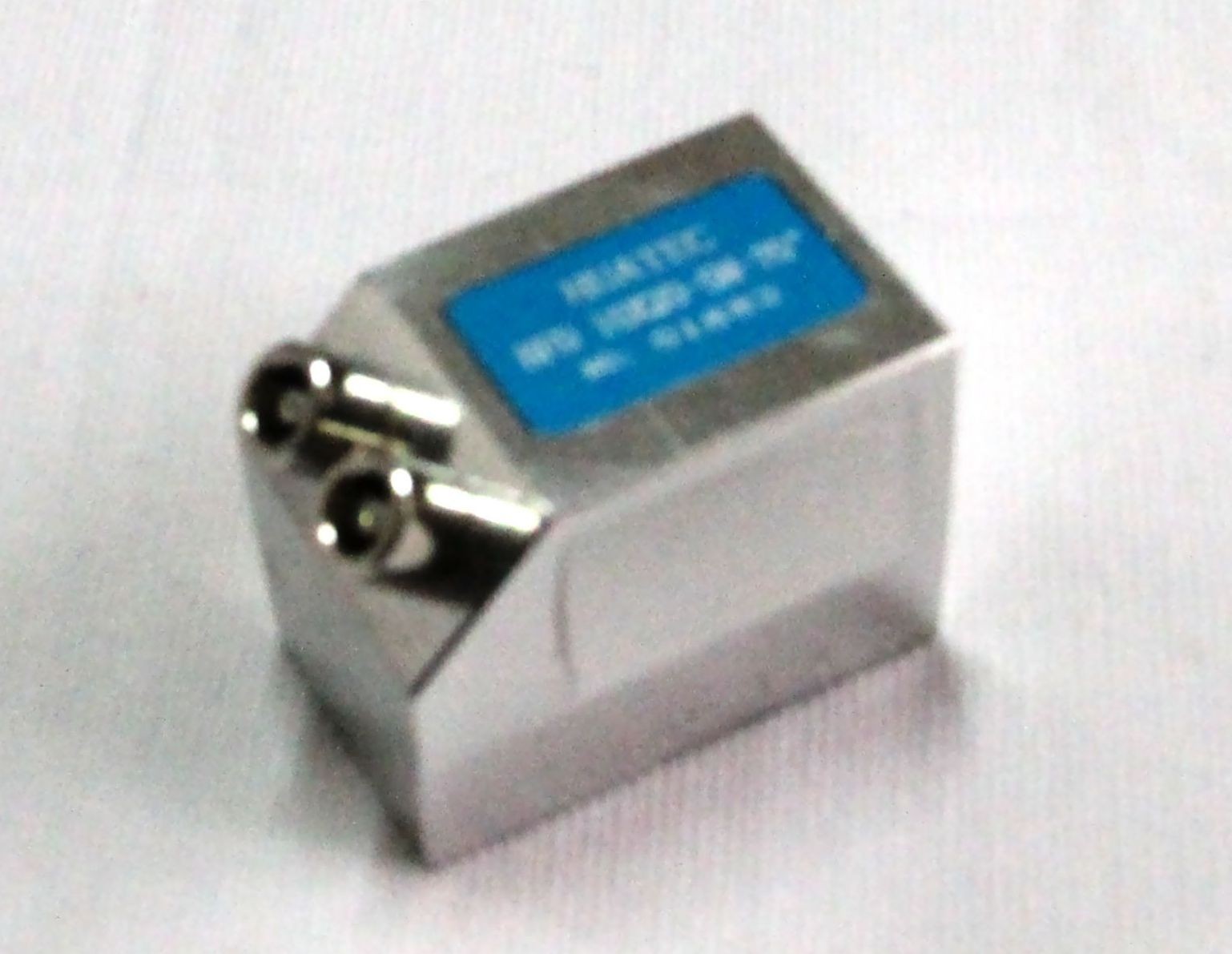

Dual angle probe
HFD 13x8-2M-60
60°
8x13
2 MHz
HFD 13x8-2M-70
70°
8x13
2 MHz
HFD 20x10-2M-60
60°
10x20
2 MHz
HFD 20x10-2M-70
70°
10x20
2 MHz
HFD 13x8-5M-60
60°
8x13
5 MHz
HFD 13x8-5M-70
70°

8x13
5 MHz

Note:

1.Other special probes are available such as Angle beam probe with pour water, probe for variable angle, probe for locomotive piston, beam TR probe with pour water, probe for railcar axle, probe for demarcate echo, cleanout machine tansducer etc.

2.We offer all kinds of probe with customer request.


Testing Curve Report for a Transducers (optional by order)


Straight / Angle Beam Probe UT probe UT transducer Ultrasonic Transducer Probe 4







Longitudinal Wave Probes (Straight Probe)

Straight / Angle Beam Probe UT probe UT transducer Ultrasonic Transducer Probe 5



Transverse Wave Angle Beam Probes

Straight / Angle Beam Probe UT probe UT transducer Ultrasonic Transducer Probe 6



Longitudinal Wave and Dual Crystal Angle Beam Probe

*Please indicate the frequency and Focus range together with probe code in your order list.

*For example: HFD 8×13-2 2.5M10 means Element size: 8 × 13, Frequency: 2.5MHz, Focus: 10mm

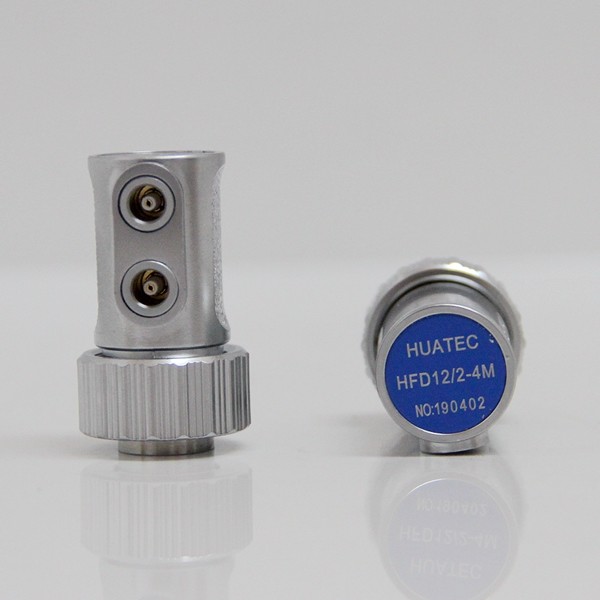

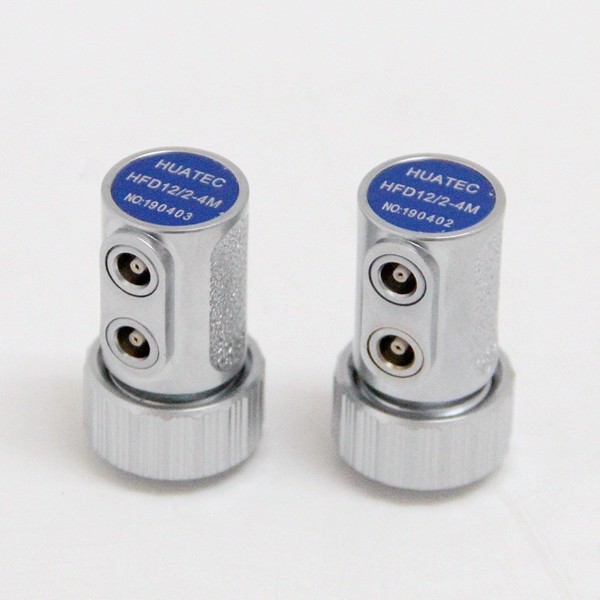

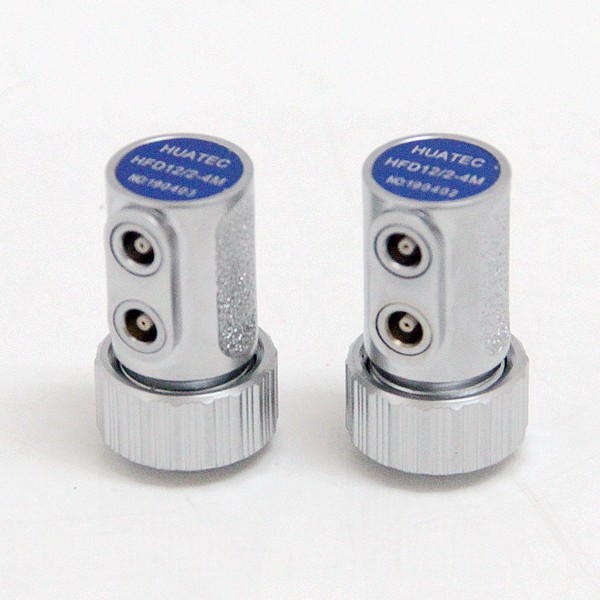

Dual Crystal Straight Probe

*Please indicate the frequency and Focus range together with probe code in your order list.

*For example: HFD2/12-2.5M10 means Element size: Ø12 Frequency: 2.5MHz Focus: 10mm

Short Approach Probe and Special Probe with Protective Membrane

*Please indicate the frequency and Focus range together with probe code in your order list.

*For example: HFD7/9 5MHz F10 means Element size: 7×9 Frequency: 5MHz Focus: 10mm
