xProduct Details
| Material | Aluminum Alloy And ABS | Meet Standards | ASTM E3022 |
|---|---|---|---|
| UV-B Content | Zero | Battery Type | 18650 6pcs, Quick Battery Replacement |
| Temperature Rise Of External Surface Under Continuous Operation | < 8K (8℃) | AC&DC | Can Work With AC Directly And Also With DC Battery |
| UV(Light)-FLUX Indoor Temperature 25℃ | 6000uW/cm2 | White Light Content | 3LUX |
| Irradiation Area At Depth Of 380mm (≥1000uw/cm²) | Φ300mm | Flux Error | 0-40℃ ±10% |
| Power Supply | AC100- 240V，50/60Hz | Size | 157. 5mm (W) *76mm (D) *177mm (H) |
| Weight | 560g Including Battery | Product Name | UV Lamp |
| Highlight | quick battery replacement magnetic flaw detector,handheld ultraviolet lamp magnetic flaw detector,ac dc magnetic particle flaw detector |
||
Product Description
ASTM E3022 Quick Battery Replacement Magnetic Flaw Detector Ac Dc Dual Operation Handheld Ultraviolet Lamp
Application:
1. Pollution detection: electronic components, the main board of flux, pollution detection, LCD board pollution detection, cleaning room entry inspection.
2. Fluorescent inspection: non-destructive testing of fluorescent penetration inspection, fluorescent magnetic particle inspection.
3. Degreasing cleaning confirmation: food industry, supply of food equipment kitchen, cooking tools, tableware degreasing cleaning confirmation.
4. Leakage inspection: leakage detection of engine lubricating oil, oil tank, piping, etc.
Feature:
● Strictly comply with ASTM E3022
● UV-B content is 0
● Battery life of 2-3 hours

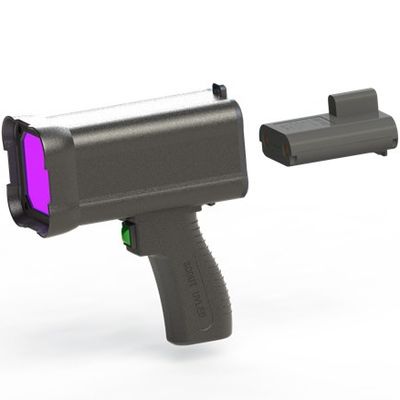

● Quick Battery Replacement
● Only 560g of battery is included
● Temperature rise of external surface under continuous operation < 8K (8℃)
● It has colour filter glass, and the white light content is less than 20LUX
● Can work with AC directly and also with DC battery
● Rechargeable battery type:18650
Parameters:
| Project | Parameter / mode |
| Style | Handheld |
|
UV(Light)-FLUX Indoor temperature 25℃ |
6000uW/cm2 |
| White light content | ≤3LUX |
|

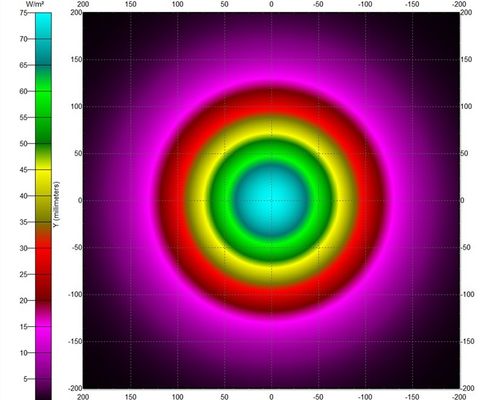

Irradiation area at depth of 380mm: (≥1000uw/cm²) |
Φ300mm |
| Flux error | 0-40℃ ±10% |
| Light distribution characteristics | Central light distribution |
| Power Supply | AC100- 240V,50/60Hz |
| Power | UV LED-12VA |
| Wavelength | Room temperature 25℃, 365nm±3nm (UVA) |

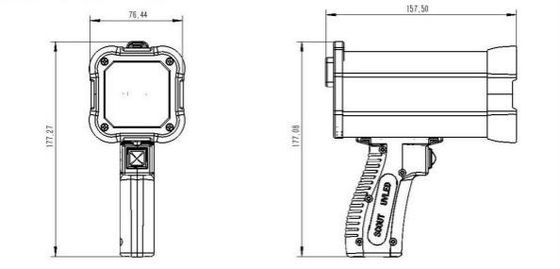

| Overall dimension | 157. 5mm (W) *76mm (D) *177mm (H) |
| Weight | 560g including battery |
| Battery capacity | 2200mA/H 12.6V |
| Charging time | 2-3H |
| Battery life (cumulative time) | UV LED 2-3H |
