Digital ASTMD2240 / JISK7215 0 - 100HC Shore Durometer HT-6510C

  • Digital ASTMD2240 / JISK7215 0 - 100HC Shore Durometer HT-6510C
  • Digital ASTMD2240 / JISK7215 0 - 100HC Shore Durometer HT-6510C
  • Digital ASTMD2240 / JISK7215 0 - 100HC Shore Durometer HT-6510C
  • Digital ASTMD2240 / JISK7215 0 - 100HC Shore Durometer HT-6510C
  • Digital ASTMD2240 / JISK7215 0 - 100HC Shore Durometer HT-6510C
Place of Origin Beijing
Brand Name HUATEC
Certification ISO, CE, GOST
Model Number HT-6510C
Minimum Order Quantity 1pcs
Packaging Details Standard export package
Delivery Time 1-4days
Payment Terms T/T, Paypal, Western Union
Supply Ability 500pcs per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Measurement Range 0-100HC Measurement Deviation ＜1%H
Power Supply 4x1.5V AAA (UM-4) Battery Battery Indicator Low Battery Indicator
Highlight

digital shore durometer

,

portable shore durometer
Leave a Message
Product Description

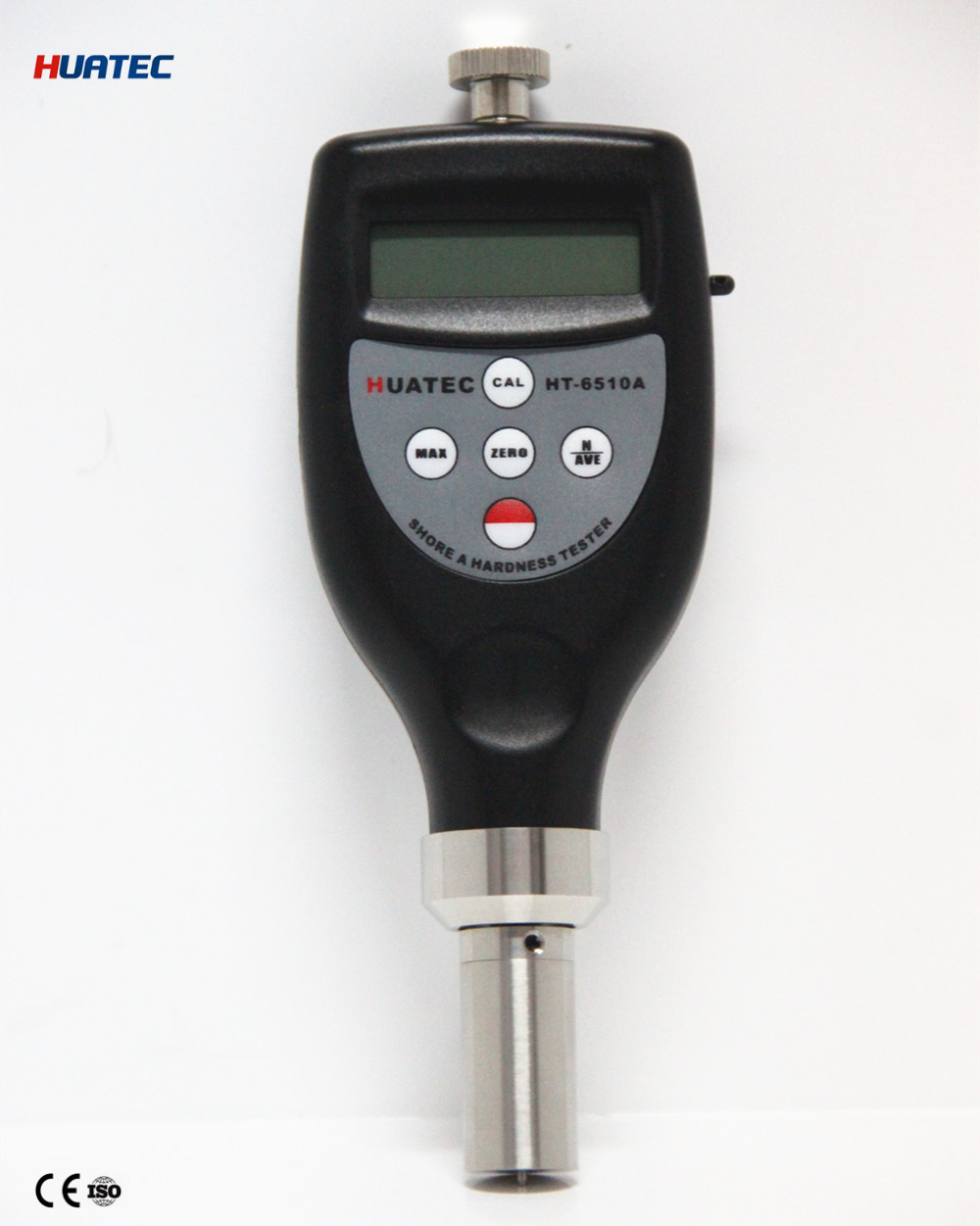

Digital Shore Durometer Form Hardness Tester Plastic Durometer

Product synopsis
Product info: digital durometer for shore hardness testing pocket size model with integrated probe
Test scale: shore hardness
Standards: DIN53505, ASTMD2240, ISO7619, JISK7215
Parameters displayed: hardness result, average value, max. value
Measurement range:0-100HC
Measurement deviation:＜1%H
Resolution: 0.1
Auto switch off
With RS232C interface
Operating conditions: 0℃ to 40℃
Power supply: 4x1.5V AAA (UM-4) battery
Battery indicator: low battery indicator
Dimensions: 162x65x38mm

Weight (not including probe):173g

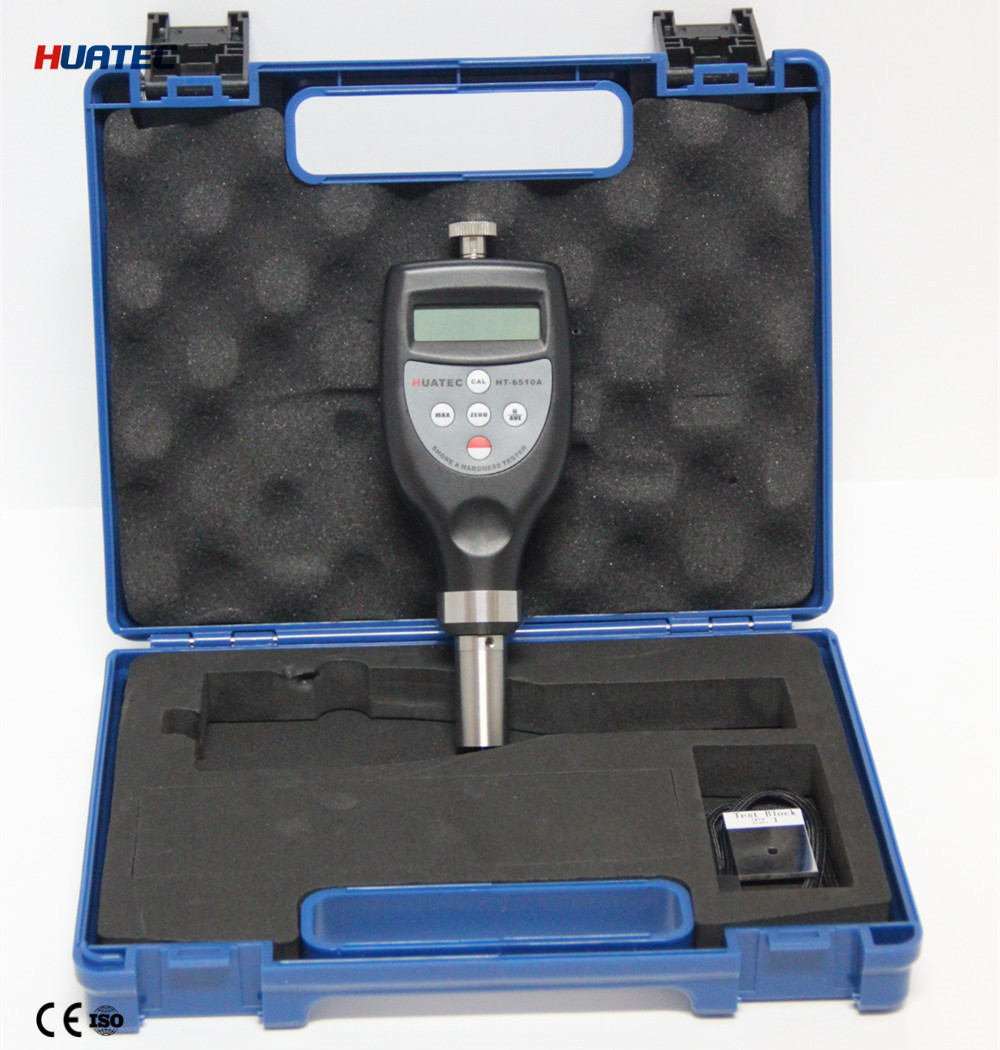

Standard accessories:
Main unit
Zero Calibration plate
Carrying case
Instruction Manual
Certificate

CALIBRATION CHECK
To check whether the tester is accurate, just Insert the indenter into the hole of the calibrated test Block. Apply enough force to make firm contact between the top surface of the test block and the presser foot. The reading
should agree with the value stamped on the test block. If not, just carry out Zero calibration and High end calibration.

Zero calibration
Hold the durometer vertically with the point of the indenter hanging in the air, the reading on the display should be '0'. If not, depress the 'ZERO' key to make the tester display '0' .

High end calibration
Just place the indenter onto a flat glass, apply enough force to make firm contact between the glass and the presser foot. The readings on the display should lie between 99.5 and 101. If not, press CAL key to carry out high end calibration.

BATTERY REPLACEMENT
When the battery symbol appears on the display, it is time to replace the batteries.
Slide the Battery Cover away from the tester and remove the batteries.
Install batteries paying careful attention to polarity.

NOTE
Readings below 10HD for Shore D type may be inexact and should not be reported for some materials. Measurements should be made on a Shore A type.
Readings above 90HA for Shore A should be made on a Shore D type durometer
