Product Details
Scrub Rate 37±1 Cycles/min Maximum Setting Of Abrasion Times 9999
Sample Thickness 0-25 Mm Test Panel Thickness Range 0-25 Mm (Adjustable)
Highlight

digital thickness gauge

,

coating thickness meter
Leave a Message
Product Description

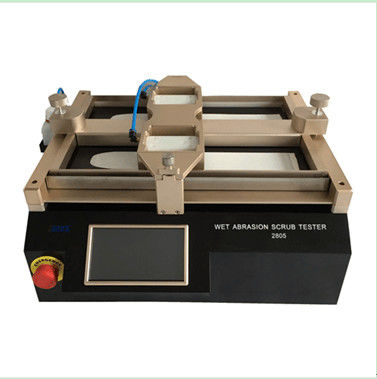

Wet Abrasion Scrub tester

Product Introduction:

This machine is used to test the abrasion, scrub and washability performance for many kinds of materials, do the abrasion scrub test in wet and dry condition; touch screen control. It is widely used in water-based coating field.

Water Based Coating Thickness Gauge Wet Abrasion Scrub Tester Thickness 0-25mm 0Water Based Coating Thickness Gauge Wet Abrasion Scrub Tester Thickness 0-25mm 1Water Based Coating Thickness Gauge Wet Abrasion Scrub Tester Thickness 0-25mm 2Water Based Coating Thickness Gauge Wet Abrasion Scrub Tester Thickness 0-25mm 3

Introduction:

This machine is used to test the abrasion, scrub and washability performance for many kinds of materials, do the abrasion scrub test in wet and dry condition; touch screen control. It is widely used in water-based coating field.



Application:

Paint, coating, leather, wood, plastic, printing materials and fiber etc.

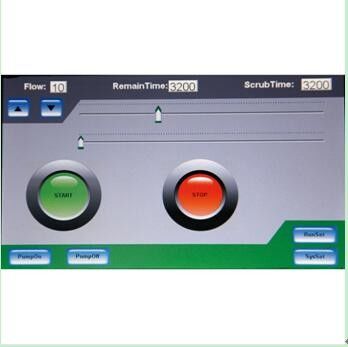

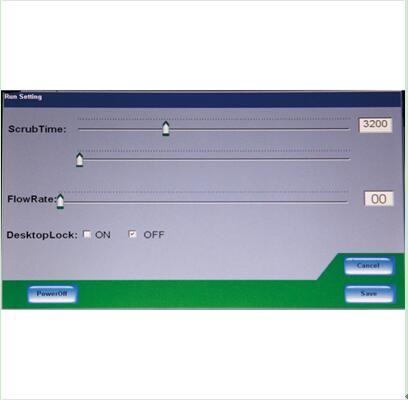

◆Big LCD design, touch-screen operation

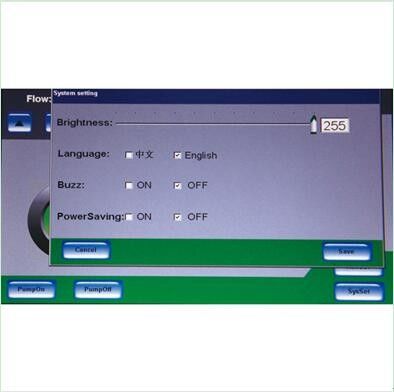

◆Operating Menu: Chinese or English
◆Testing fluid flow is controlled by peristaltic pump



Technical Specification:

◆Scrub rate: 37±1 cycles/min
◆Maximum setting of abrasion times: 9999
◆Sample thickness: 0-25 mm
◆Test panel thickness range:0-25 mm (Adjustable)



Standards:

◆ASTM D2486, D3450
◆DIN 53778



Order Information:

◆ 2805
Wet Abrasion Scrub Tester
With one standard accessory ae below

Accessories: (Optional)
◆ 2805/1
Standard: DIN 53778

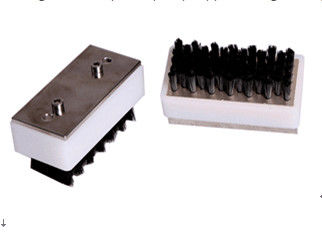

Carriage assembly with pump, applied weight 250g, 2 brushes with natural bristle

Water Based Coating Thickness Gauge Wet Abrasion Scrub Tester Thickness 0-25mm 4

◆ 2805/2
Standard: ASTM D2486

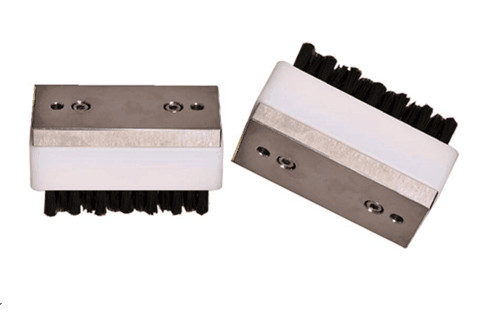

Carriage assembly with pump, applied load 454g, 2 Nylon brushers, 2 rubber pads with 325×12.7×0.25mm brass shim

Water Based Coating Thickness Gauge Wet Abrasion Scrub Tester Thickness 0-25mm 5

◆ 2805/3
Standard: ASTM D3450

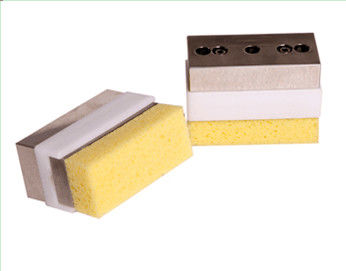

Carriage assembly with pump, applied weight 1500g, 2 sponges



Water Based Coating Thickness Gauge Wet Abrasion Scrub Tester Thickness 0-25mm 6
