Medical Tablet X Ray Film Developer , 220v 50 / 60hz Film Washing Machine

Place of Origin CHINA
Brand Name HUATEC
Certification ISO CE
Model Number HDL-P14/P17
Minimum Order Quantity 1
Packaging Details in carton
Payment Terms T/T, Western Union
Supply Ability 500

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Film Specification Minimum 10*10cm Maximum 35*∞cm Flushing Time 105、135、165sec
Developing Time 28、36、44sec Flushing Volume 80 Pieces / Hours(14"*17")120 Pieces / Hours(11"*14")
Drug Tank Capacity Developing, Fixing, And Washing Each 5.2L
Highlight

x ray inspection equipment

,

industrial x ray machine

Leave a Message
Product Description

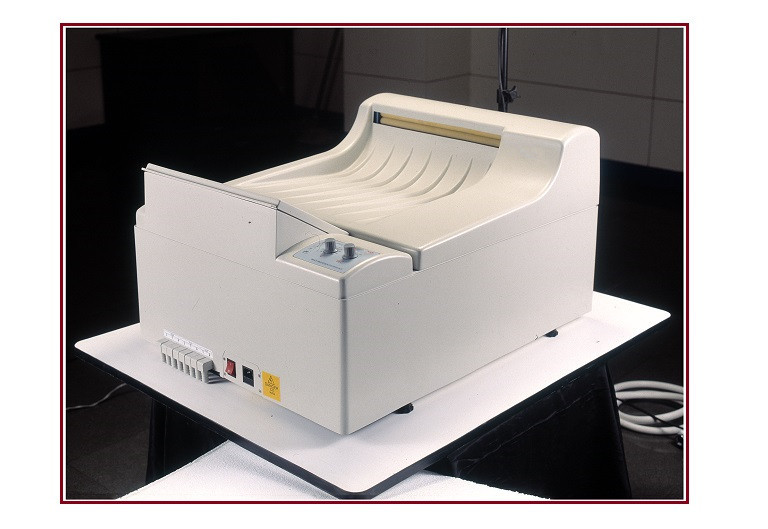

HUATEC HDL-P14/P17 Medical tablet X Ray film processor

Medical Tablet X Ray Film Developer , 220v 50 / 60hz Film Washing Machine 0

Medical Tablet X Ray Film Developer , 220v 50 / 60hz Film Washing Machine 1

Medical Tablet X Ray Film Developer , 220v 50 / 60hz Film Washing Machine 2

Medical Tablet X Ray Film Developer , 220v 50 / 60hz Film Washing Machine 3

Medical Tablet X Ray Film Developer , 220v 50 / 60hz Film Washing Machine 4

Medical Tablet X Ray Film Developer , 220v 50 / 60hz Film Washing Machine 5

Medical Tablet X Ray Film Developer , 220v 50 / 60hz Film Washing Machine 6

Medical Tablet X Ray Film Developer , 220v 50 / 60hz Film Washing Machine 7

Medical Tablet X Ray Film Developer , 220v 50 / 60hz Film Washing Machine 8

Standard equipment

1. development synchronous heating system

2. development of independent circulation system

3. development synchronous supplementary system

4. water controlled water saving system of solenoid valve

5. professional conical air duct drying system

6. mechanical sensing feeding system

7. DKM electronic speed control energy saving system

Model HDL-P14 HDL-P14A HDL-P17 HDL-P17A
Film specification

Minimum 10*10cm

maximum 35*∞cm

Minimum 10*10cm

maximum 45*∞cm

Flushing time 105,135,165sec 90-360sec 105,135,165sec 90-360sec
Developing time 28,36,44sec 20-60sec 28,36,44sec 20-60sec
Flushing volume 80 pieces / hours(14"*17")120 pieces / hours(11"*14") 110 pieces / hours(14"*17")160 pieces / hours(11"*14") 100pieces / hours(14"*17")155 pieces / hours(11"*14") 140 pieces / hours(14"*17")210 pieces / hours(11"*14")
Drug tank capacity Developing, fixing, and washing each 5.2L Developing, fixing, and washing each 5.2L Developing, fixing, and washing each 8L Developing, fixing, and washing each 8L
Developer temperature 28℃-37 ℃adjustable (interval 1℃) 20℃-40 ℃adjustable (interval 0.1℃) 28℃-37 ℃adjustable (interval 1℃) 20℃-40 ℃adjustable (interval 0.1℃)
Drying temperature 40℃-65 ℃(automatic regulation) 40℃-65 ℃(automatic regulation) 40℃-65 ℃(automatic regulation) 40℃-65 ℃(automatic regulation)
Film induction Imported microswitch Imported microswitch Imported microswitch Imported microswitch
Volume ㎝³ 79*59*42 79*59*42 79*69*42 79*69*42
weight Gross weight 50kg (net weight 45kg) Gross weight 60kg (net weight 55kg)
Anti crystallization and anti oxidation 45 minutes / times
Flushing process Development→Fixed shadow→washing→Dry
Supplement According to the area of film flushing, automatic water replenishment is provided, and manual replenishment is also provided. The amount of water replenishment is 20-200ml/0.3㎡
Water washing control When the film is flush, it will automatically water for 2-8L/ minutes, and automatically shut down when standby.
Power consumption 220V 50/60Hz 8.8A (flushing 2KW, standby 120W)
