Industrial Film View Lamp , Led Film View Machine Nonpolar Continuous Dimming

  • Industrial Film View Lamp , Led Film View Machine Nonpolar Continuous Dimming
  • Industrial Film View Lamp , Led Film View Machine Nonpolar Continuous Dimming
Place of Origin CHINA
Brand Name HUATEC
Certification ISO CE
Model Number HFV-2008
Minimum Order Quantity 1
Packaging Details in carton
Supply Ability 500

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Maximum Brightness 205000cd/㎡ Light Source LED Light Source
Observable Blackness 5.0D Dimming Mode Nonpolar Continuous Dimming
Light Source Life ≧10000 Hours Color Temperature 9000K Above, Blue Ray, Can Reduce Eye Fatigue
Light Two Choices Of Foot Control And Manual Switch Observation Screen Size 200*80mm
Uniformity Coefficient Of Observation Screen ≧95%
Highlight

welding x ray machine

,

industrial x ray machine
Leave a Message
Product Description

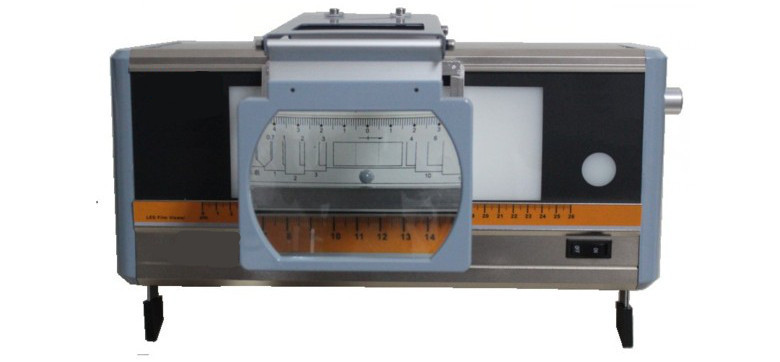

HFV-2008 Industrial film view lamp

HFV-2008 de force LED industrial film observation lamp is a new product developed by the latest standard for JB/T4730-2005 "non destructive testing of pressure equipment" and GB/T 19802-2005 "industrial radiographic negative film lamp". The imported ultra high power LED (SMD) was used as the light source of the viewing lamp. The tiny defects on the 5.0D blackening film can be clearly observed. In the foot switch mode, continuous work for 12 hours, photographic film does not curl.

HFV-2008 LED industrial film observation lamp is designed for the constant current driving mode for the view lamp, which ensures the normal work of LED to a greater extent, thus achieving the purpose of prolonging the life. The stepless dimming of the low voltage electronic mode further ensures the safety of the users. A magnifying glass and a slide gauge, which are integrated with the cabinet, are conveniently attached to the cabinet, so as to facilitate the evaluation of the micro defect levels on the negatives.

HFV-2008 Industrial film view lamp

Industrial Film View Lamp , Led Film View Machine Nonpolar Continuous Dimming 0



HFV-2008 technical parameters:

Model HFV-2008
Maximum brightness 205000cd/㎡
light source LED light source
Observable blackness 5.0D
Dimming mode Nonpolar continuous dimming
Light source life ≧10000 hours
Color temperature 9000K above, Blue ray, can reduce eye fatigue
Light Two choices of foot control and manual switch
Observation screen size 200*80mm
Uniformity coefficient of observation screen ≧95%
12 hour surface temperature ≦40℃
power 136W
weight 5.4kg
