High quality of optical system 300mm 50 / 60Hz Profile Projector VP-12-2010
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Highlight | vertical profile projector,horizontal profile projector |
||
|---|---|---|---|
Product Description
Features:
Profile projector VP12 series are excellent for its high quality of optical system and stable worktable with big travel. The focus is adjusted by ascending and descending the projection box. The erect and revise image can be selected by different customers’ request.
It is widely used in the field of mechanic, electronic, rubber industry, and college, research institute and the measuring checking department for checking product quality. VP12 can inspect all kinds of surface and outline of complicated work-pieces such as Template, Pressing work-pieces, Cam, Screw thread, Gear, etc.
It is widely used in the field of mechanic, electronic, rubber industry, and college, research institute and the measuring checking department for checking product quality. VP12 can inspect all kinds of surface and outline of complicated work-pieces such as Template, Pressing work-pieces, Cam, Screw thread, Gear, etc.
It has foot-switch, LCD display digital readout DC-5000, mini-printer and 2D measuring software, and other optional accessories for upgrade.
Technical Specification:
|
The Technical Specification of Profile Projector VP12 series (Unit: mm)
|
||||||
|
1, Model
|
VP12-1510(Z)
|
VP12-2010(Z)
|
VP12-2515(Z)
|
|||
|
2, Travel of X and Y axis
|
150x100
|
200x100
|
250x150
|
|||
|
3, Metal stage dimension
|
354 x 228
|
404 x 228
|
450 x 280
|
|||
|
4, Glass Stage Dimension
|
210 x 160
|
260 x 160
|
306 x 196
|
|||
|
5, Travel: Z axis
|
100 (for focusing)
|
|||||
|
6, Measuring accuracy (μm)
|
≤3.0 + L/75
|
|||||
|
7, Resolution (X/Y-axis)
|
0.001
|
|||||
|

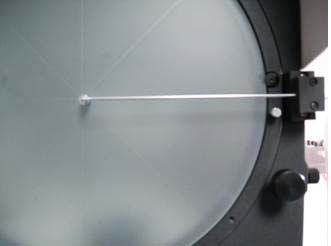

8, Projector Screen
|
◇ Size (mm)
|
Ø308, effective range≥Ø300mm
|
||||
|
◇ Rotation range
|
0 ~ 360º
|
|||||
|
◇ Angle resolution
|
1’ or 0.01º
|
|||||
|
9, Objective
|
◇ Magnification
|
10X(Std.)
|
20X(Opt.)
|
50X(Opt.)
|
100X(Opt.)
|
|
|
◇ Object view
|
Ø30
|
Ø15
|
Ø6
|
Ø3
|
||
|
◇ Working distance
|
77.7
|
44.3
|
38.4
|
25.3
|
||
|
10, Data Processor
|
DC-3000 multi-function data processing system:
1. Gathering the data and measuring point, circle, angle and distance
2. Coordinate rotation
3. RS-232 data output
|
|||||
|
11, Illumination
|
Transmission and reflection light source: 24V/150W-halogen lamp
|
|||||
|
12, Power
|
110V/220V(AC) 50/60Hz
|
|||||
|
13, Light source cooling
|
Forced air cooling
|
|||||
|
14, Instruments dimension (mm)
|
780 x 780 x 1100
|
780 x 780 x 1100
|
810 x 780 x 1100
|
|||
|
15, Weight (Kg)
|
160
|
170
|
180
|
|||
|
16, Remark
|
The letter Z delegate the image is erect.
|
|||||
