High Precision Automatic Film Applicator Advanced Touch Screen Technology

  • High Precision Automatic Film Applicator Advanced Touch Screen Technology
  • High Precision Automatic Film Applicator Advanced Touch Screen Technology
  • High Precision Automatic Film Applicator Advanced Touch Screen Technology
Place of Origin Beijing
Brand Name HUATEC
Certification ISO, CE, GOST
Model Number HT1811
Minimum Order Quantity 1pcs
Packaging Details Standard export package
Delivery Time 1-4days
Payment Terms T/T, Paypal, Western Union
Supply Ability 500pcs per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Minimum Temperature Ambient +5ºC Maximum Temperature +150ºC
Temperature Accuracy 1ºC
Highlight

oating thickness tester

,

digital thickness gauge
Leave a Message
Product Description

Product Introduction:

Automatic Film Applicators are made with high precision machined components, sturdy mainframe and heavy duty power train assembly, to ensure long term reliable operation. Consistent drawdown conditions such as speed, flatness, combined with applicator gap and geometry are essential elements to obtain perfectly reproducible samples, eliminating human error and uncertainty.

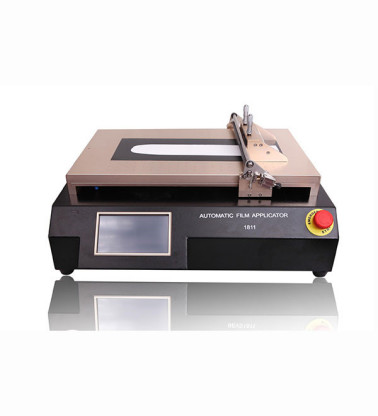

High Precision Automatic Film Applicator Advanced Touch Screen Technology 0

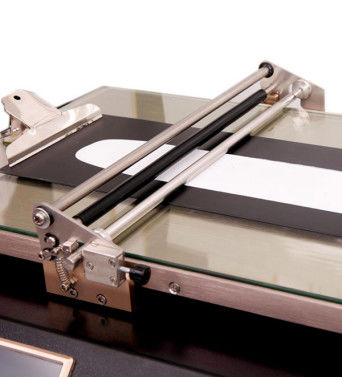

High Precision Automatic Film Applicator Advanced Touch Screen Technology 1

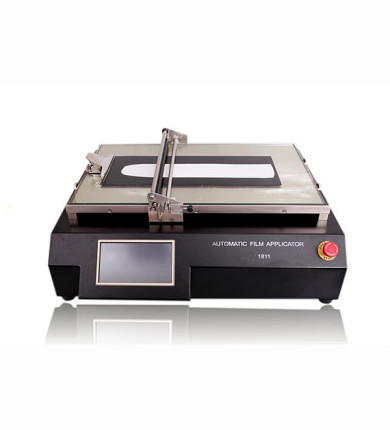

High Precision Automatic Film Applicator Advanced Touch Screen Technology 2



Introduction:

Automatic Film Applicators are made with high precision machined components, sturdy mainframe and heavy duty power train assembly, to ensure long term reliable operation. Consistent drawdown conditions such as speed, flatness, combined with applicator gap and geometry are essential elements to obtain perfectly reproducible samples, eliminating human error and uncertainty.



Software Introduction:

◆Advanced touch screen technology

High Precision Automatic Film Applicator Advanced Touch Screen Technology 3

◆Film size:A4,A3 and User Defined.


High Precision Automatic Film Applicator Advanced Touch Screen Technology 4
◆Adjustable speed.


High Precision Automatic Film Applicator Advanced Touch Screen Technology 5
◆Report output:tab in the coating's name,viscosity,thickness for the report to be output.
High Precision Automatic Film Applicator Advanced Touch Screen Technology 6

Technical Specification:

Model 1811/1 1811/2 1811/3
Speed 50-300mm/sec 50-300mm/sec 50-300mm/sec
Stroke Length (Max) 360mm 360mm 360mm
Test Panel 420×300mm 420×300mm 420×300mm
Test Platform Glass bed with clamp Vacuum bed Heated vacuum bed
Bar Coater Capacity Diameter 10-13mm 10-13mm 10-13mm
Length 320mm 320mm 320mm
Standard ASTM D823/C ASTM D823/C ASTM D823/C
Power 230±10%, 50/60Hz 230±10%, 50/60Hz 230±10%, 50/60Hz



Electrically Heated Vacuum Bed
automatic vacuum applicator is also available with an electrically heated vacuum
bed. The bed temperature can be set from ambient +5°C to + 150°C and temperature is
uniform over the whole bed.
◆Minimum temperature: Ambient +5ºC
◆Maximum temperature: +150ºC
◆Temperature accuracy: 1ºC



Order Information:

1811/1 Automatic Film Applicator (with glass bed)
1811/2 Automatic Film Applicator (with vacuum bed)
1811/3 Automatic Film Applicator (with electrically heated vacuum bed)
