High precision 50Hz / 60Hz AC 220V Micro Hardness Tester HV1000 with LED display

  • High precision 50Hz / 60Hz AC 220V Micro Hardness Tester HV1000 with LED display
Place of Origin Beijing
Brand Name HUATEC
Certification ISO, CE, GOST
Model Number HV1000
Minimum Order Quantity 1pcs
Packaging Details Standard export package
Delivery Time 1-4days
Payment Terms T/T, Paypal, Western Union
Supply Ability 500pcs per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Highlight

micro vickers hardness tester

,

digital micro hardness tester
Leave a Message
Product Description

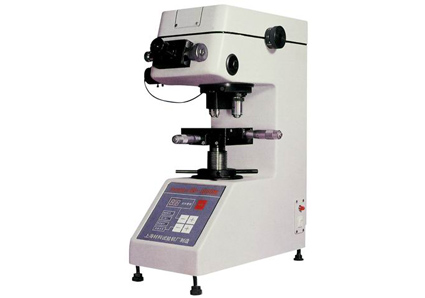

High precision 50Hz / 60Hz AC 220V Micro Hardness Tester HV1000 with LED display







Micro hardness tester Model HV-1000 adopts precise mechanical technique and

  • photoelectrical technique.
  • The tester is able to adjust and measure either strong or weak
  • light source, and is capable to pressure holding time of the test
  • load and is displayed by LED
  • This tester adopts peculiar indentation measuring, inverting
  • and read mechanism through measuring once by the
  • micrometer eyepiece
  • It is easy to use, and high precision in measurement

Specifications of micro hardness tester HV1000
Test load
0.098, 0.246, 0.49, 0.98, 1.96, 2.94, 4.90, 9.80N (10-1000kgf)
Load holding time
5-60sec
Magnification of microscope
Measuring:400x (Object lens 40x, Eyepiece 10x) Observation:100x (Object lens 10x, Eyepiece10x)
Loading mechanism
Automatic loading and releasing method
Measuring
microscope
Mechanical
Digital
Max.measuring length 150μm
Min.measuring unit 0.5μm
Max.height of specimen
Approx 65mm
Max.depth of specimen
Approx 85mm
Micro test table
Dimension:100_100mm Max.movement:25mm in X&Y axis Min .micro graduation:1/100mm
Digital data display
(5-2500)HV
Automatic recorder

Photographic device
Possible to install at any time
Dimensions of tester
W290 ×D405×M480mm
Weight of tester
25kg
Power supply
AC220V/110V±10% 50Hz/60Hz

Standard delivery of micro metal hardness tester HV1000
Main unit                                                                                  1
Micro Vickers indenter                                                     1
10 × objective                                                                        1
40 × objective                                                                        1
Manual                                                                                       1
Weight shaft                                                                            1
Cross testing table                                                                 1
Screwdriver                                                                             2
Horizontal adjusting screw                                               4
10× micrometer eyepiece                                                  1
Micro Vickers hardness test block (high)                    1
Micro Vickers hardness test block (medium)            1
Level                                                                                            1
Lamp (6V/2 W)                                                                       2
Fuse 1A, 2A                                                                               2
Certificate                                                                                  1
Manual for printer                                                                  1
Weight                                                                                          6
Fine wire holder                                                                       1

Optional accessories of micro metal hardness tester HV1000

Depends on customer demand
