Electromagnetic Induction Ultrasonic Flaw Detector Ferrite Content Tester

Place of Origin Beijing
Brand Name HUATEC
Certification ISO, CE, GOST
Model Number HFE-100
Minimum Order Quantity 1pcs
Packaging Details Standard export package
Delivery Time 1-4days
Payment Terms T/T, Paypal, Western Union
Supply Ability 500pcs per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Principle Electromagnetic Induction Display Mode Two Display Modes (SAVE And FREE): Single Testing Value Or Continuous Testing Value
Display Units Two Units Display: Fe% (ferrite Content) And FN (WRC Number, Amount Of Ferrite) Statistics Function Mean Value, Max Value, Min Value, Standard Deviation Value.
Power Off Auto Power Off Function Standards GB/T1954-2008、ISO 8249 And ANSI/AWS A4.2
Testing Range 0.1~80%Fe , ( 0.1~110)WRC-number Accuracy ±2% (range 0.1~30%Fe), ±3% (range 30~80% Fe)
Resolution 0.1%Fe, 0.1FN Operation Temp. 5 ~ 40℃
Battery 9v 6F22 Size 175X100X38mm
Weight 1kg
Highlight

ultrasonic flaw detectors

,

ultrasonic flaw detection

,

digital ultrasonic flaw detector

Leave a Message
Product Description

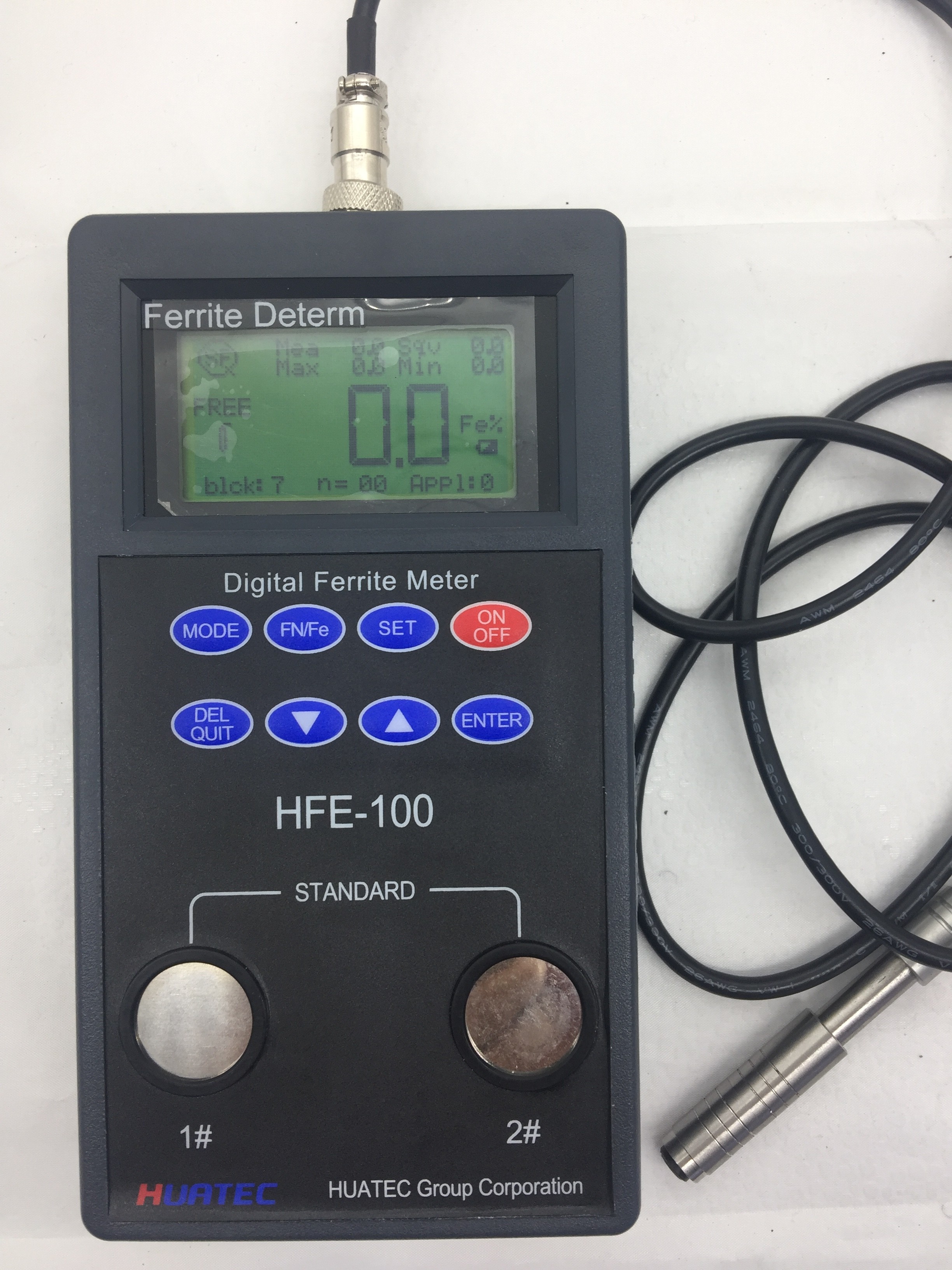

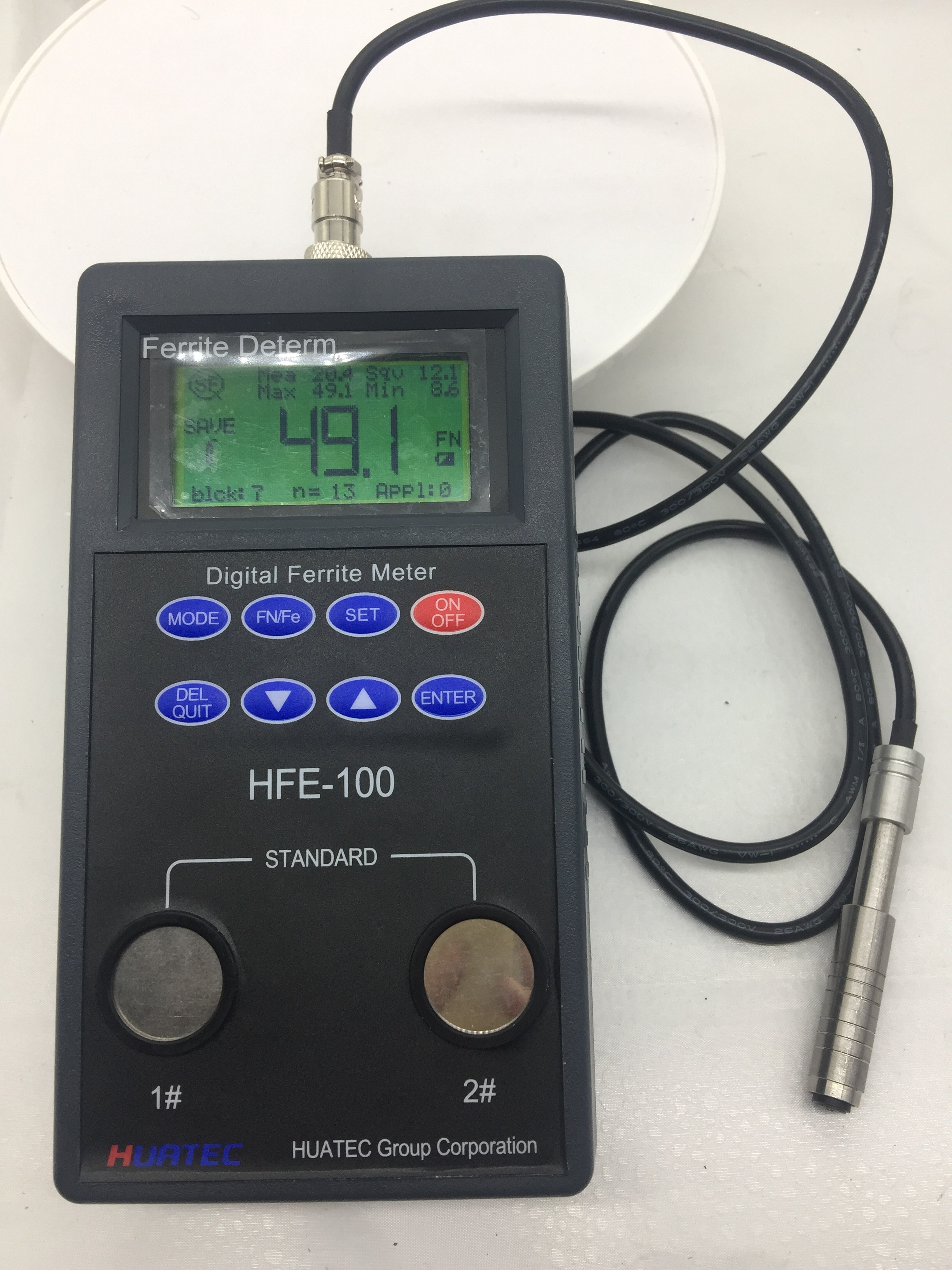

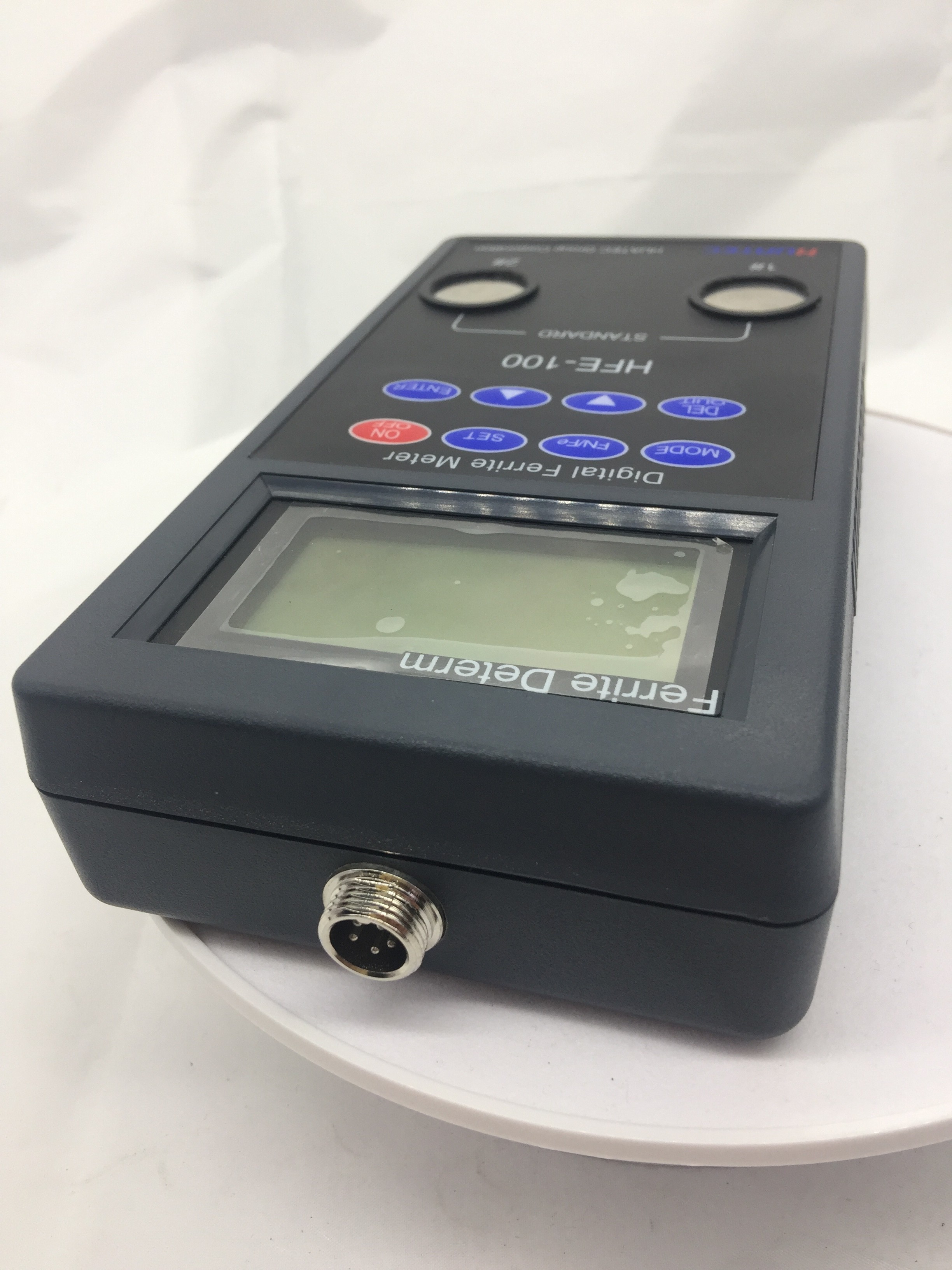

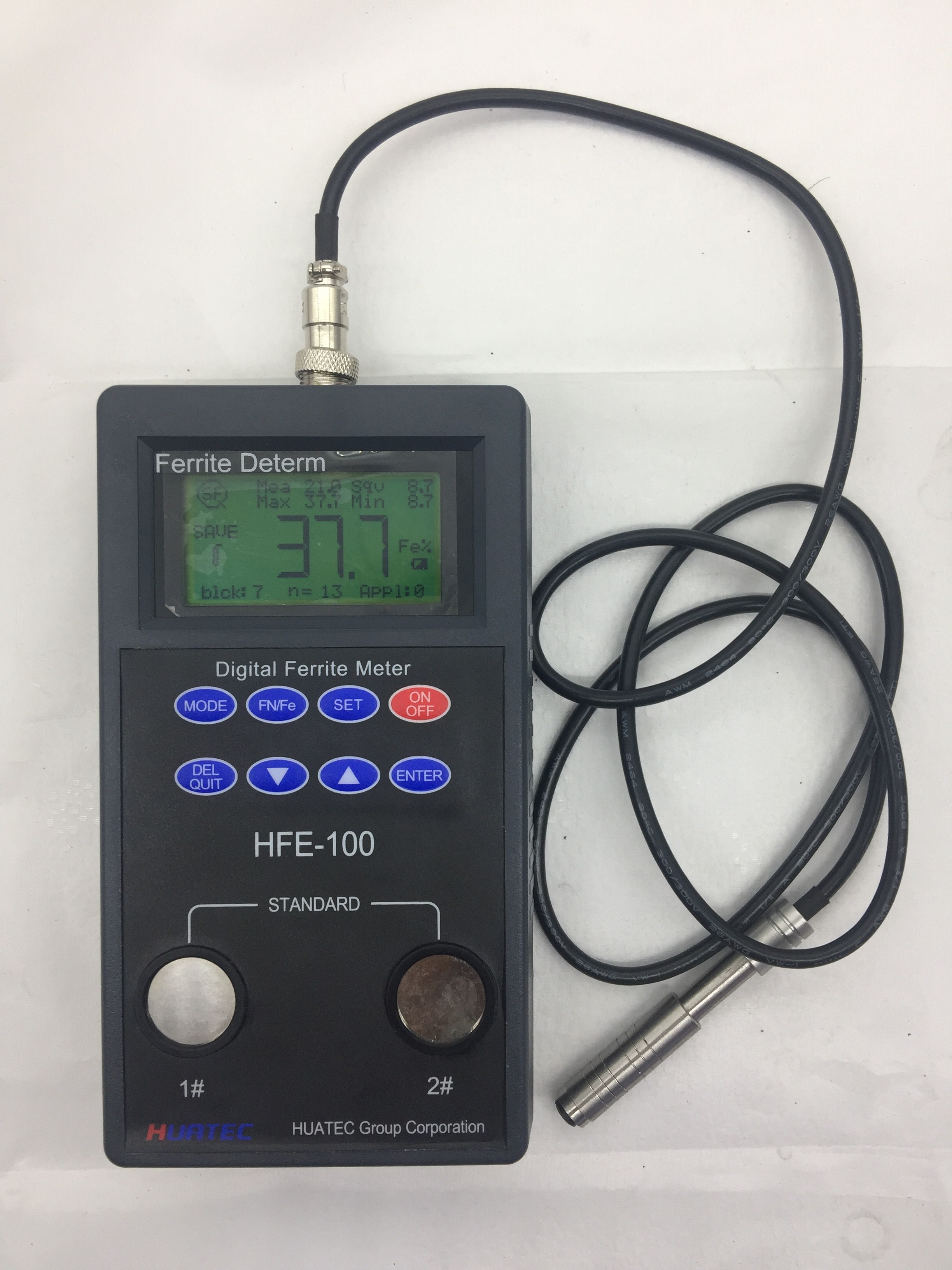

HUATEC HFE-100 Digital Ferrite Meter Ferrite Content Tester Ferrite Tester





1. Application

In the chemical industry the stress-bearing members of containers,pipes,reactor vessels and other plant are usually made of austenitic steel or duplex steel or cladding of austenitic chromium-nickel steel.The residual ferrite content must be within a specific range compatible with the mechanical strength requirements or the item concerned.

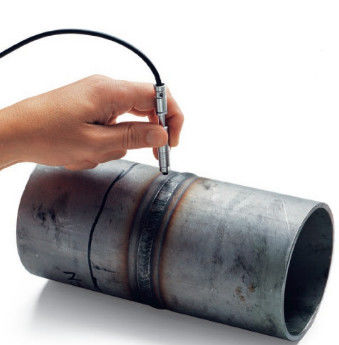

The HFE-100 was developed to facilitate accurate ferrite content measurements On welded seams and cladding items.

To measure the content of ferrite in stainless steel

To measure the content of ferrite in alloy steel

To measure the content of ferrite in welding part



2. Feature

● Working principle:Electromagnetic induction

● LCD display,

● Two display modes (SAVE and FREE): single testing value or continuous testing value.

● Two units display: Fe% (ferrite content) and FN (WRC number, amount of ferrite).

● Statistics display together with measurements, mean value, Max value, Min value, standard deviation value.

● Auto power off function

● Meet standards of GB/T1954-2008,ISO 8249 and ANSI/AWS A4.2.

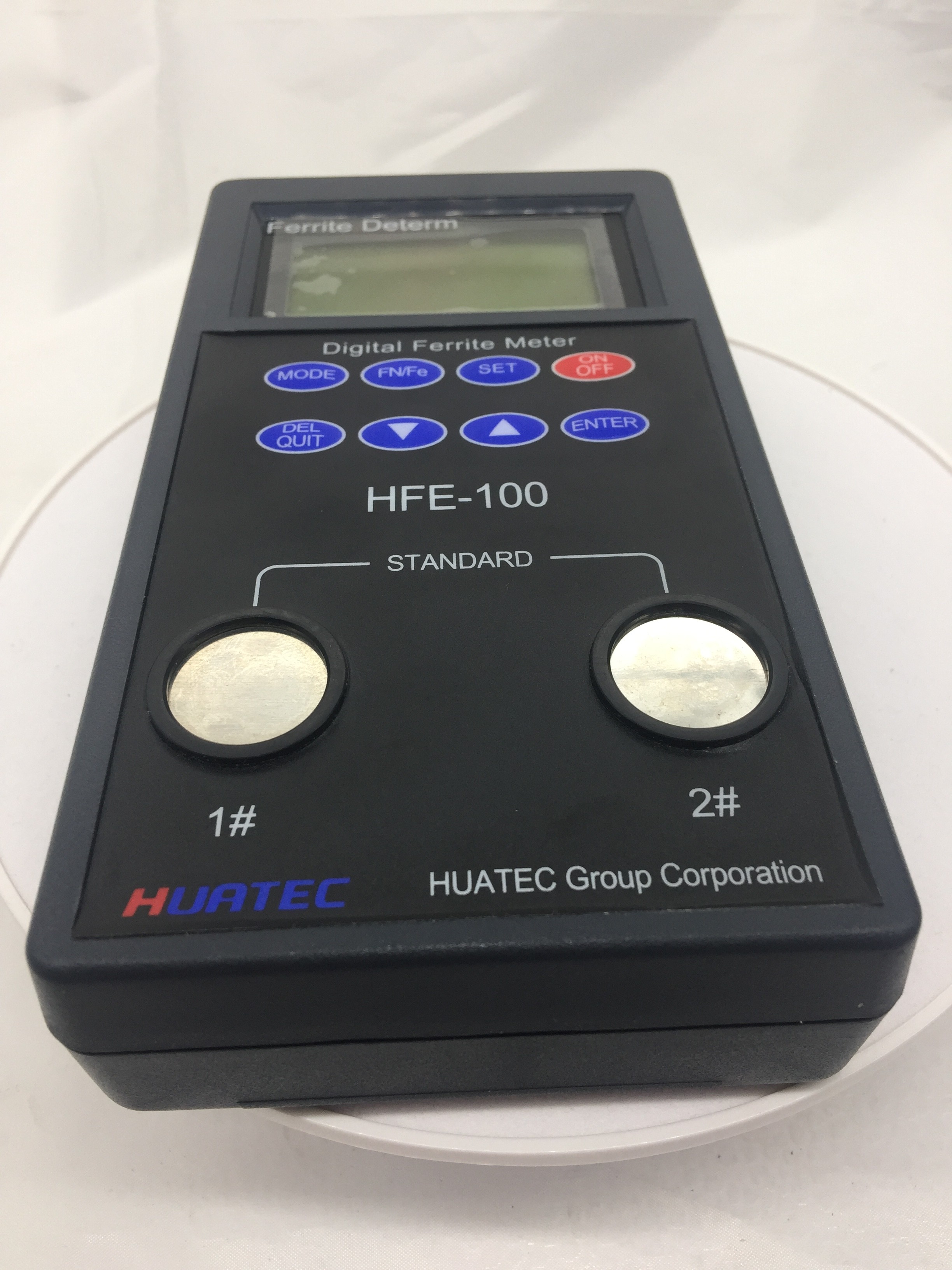

● Standard two calibration blocks

●500 data memory



3. Technical data

The meter is mainly used for the determination of the ferrite content of welded austenitic steel or Duplex or cladding of austenitic chromium-nickel steel weld.

Range 0.1~80%Fe , ( 0.1~110)WRC-number

Accuracy: ±2% (range 0.1~30%Fe), ±3% (range 30~80% Fe)

Resolution: 0.1%Fe, 0.1FN

Operating temperature 5 ~ 40℃

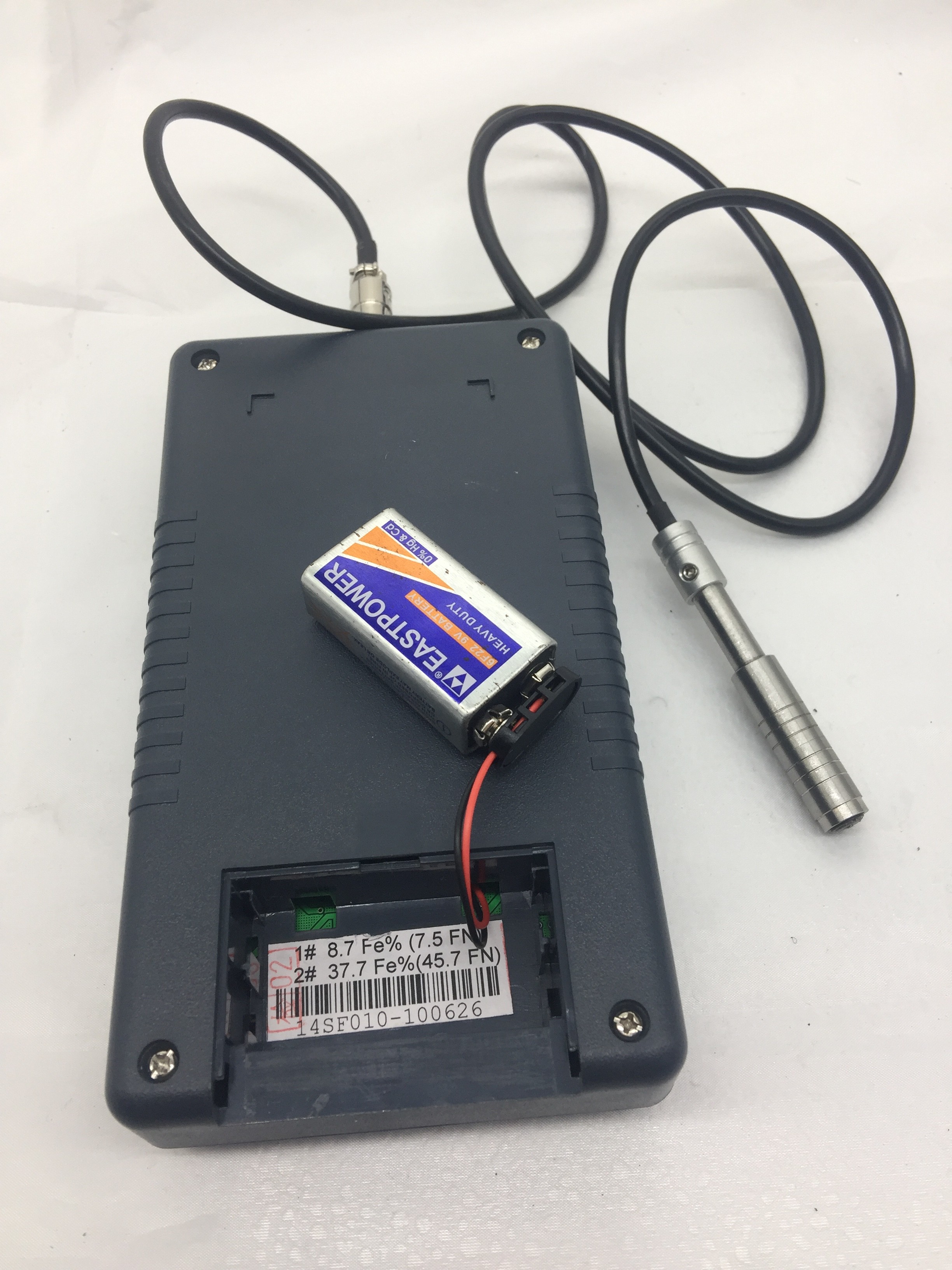

Batteries 9v 6F22

Size: LX WX H 175X100X38mm



4. Notice

Notice

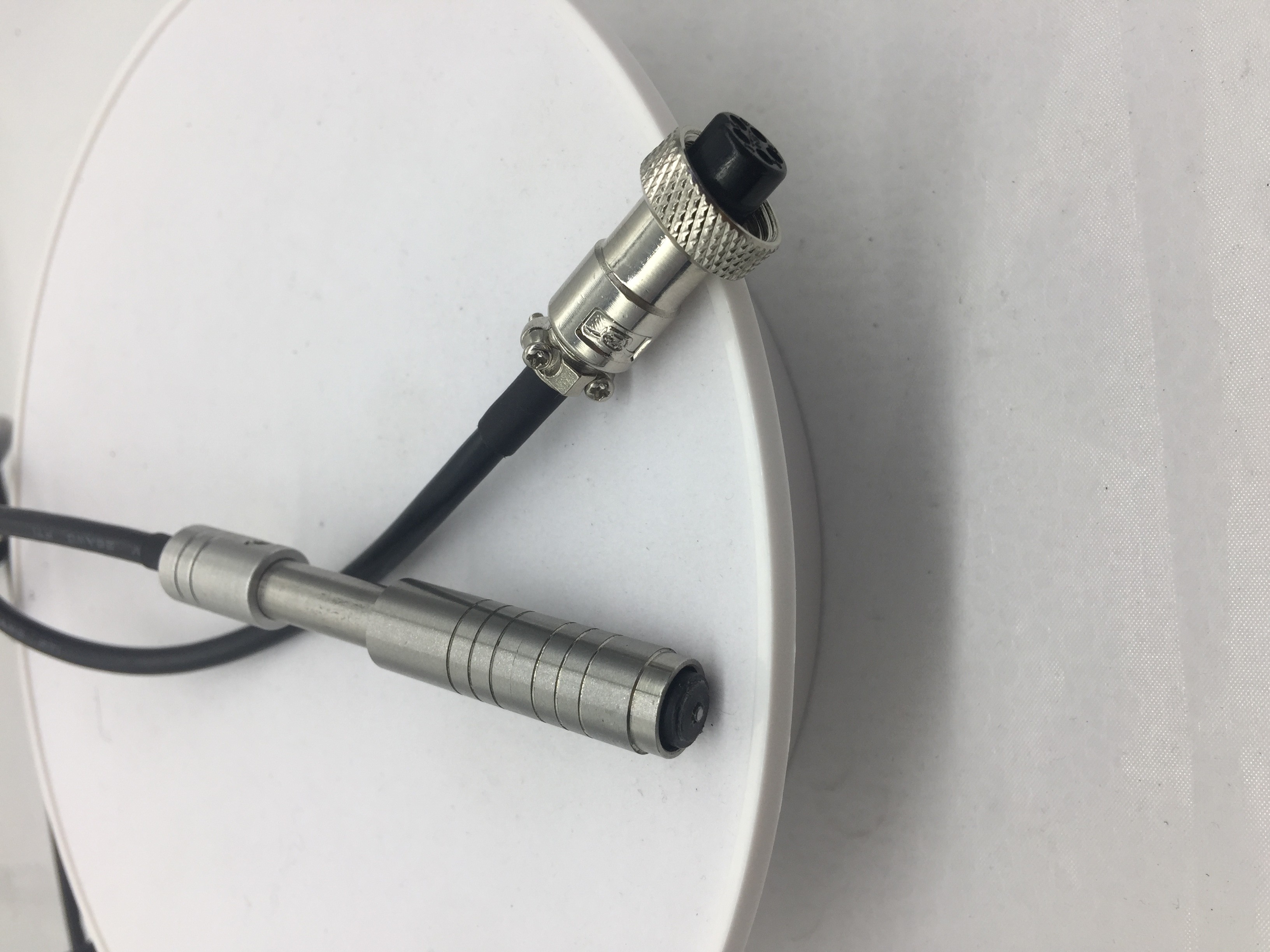

Probes are very sensitive element, on the measurement process it should be gently placed on the sample.

The following should be noted:

●The weld to be completely cooled before measurement, the probe can be in contact with the specimen gently.

● If using an external power supply, be sure to remove the battery first.

● Don’t disassemble or beat the probe, otherwise it will cause the parameter changes.

● Take off the battery for a long time without using the instrument.



5. Standard delivery

Main unit, probe, two calibration sample piece, carrying-case, operating manual, certificate.
