Digital Multi Channel Sdd Detector Vacuum Pumping System Rare Earth Elements Analyzer

  • Digital Multi Channel Sdd Detector Vacuum Pumping System Rare Earth Elements Analyzer
  • Digital Multi Channel Sdd Detector Vacuum Pumping System Rare Earth Elements Analyzer
  • Digital Multi Channel Sdd Detector Vacuum Pumping System Rare Earth Elements Analyzer
  • Digital Multi Channel Sdd Detector Vacuum Pumping System Rare Earth Elements Analyzer
  • Digital Multi Channel Sdd Detector Vacuum Pumping System Rare Earth Elements Analyzer
Place of Origin Beijing
Brand Name HUATEC
Certification ISO CE
Model Number HXRF-150S
Minimum Order Quantity 1pcs
Packaging Details Standard export package
Delivery Time 6days
Payment Terms T/T, Paypal, Western Union
Supply Ability 100pcs per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Alloy Elements From Sodium (Na) To Uranium (U) Resolution 129eV±5eV
Detector SDD Detector Best Analysis Accuracy RSD≤0.1% (national Standard Sample)
Large Sample Cavity Size 400mm X 340mm X 80mm Vacuum Sample Chamber Size φ100mm×75mm Height
Operating Environment Temperature And Humidity Indoor Temperature 15 ~ 30℃; Relative Humidity ≤80% (no Condensation) Product Name Fluorescence Spectrometer
Working Power Supply AC 220V ±5V, 50Hz Weight 56kgs
Size 245mm(L)X91mm(W)X319mm(H) Detection Object Solid, Liquid, Powder
Highlight

digital sdd detector

,

multi channel sdd detector
Leave a Message
Product Description



Digital Multi-Channel SDD Detector Vacuum Pumping System Rare Earth Elements Analyzer

Product introduction

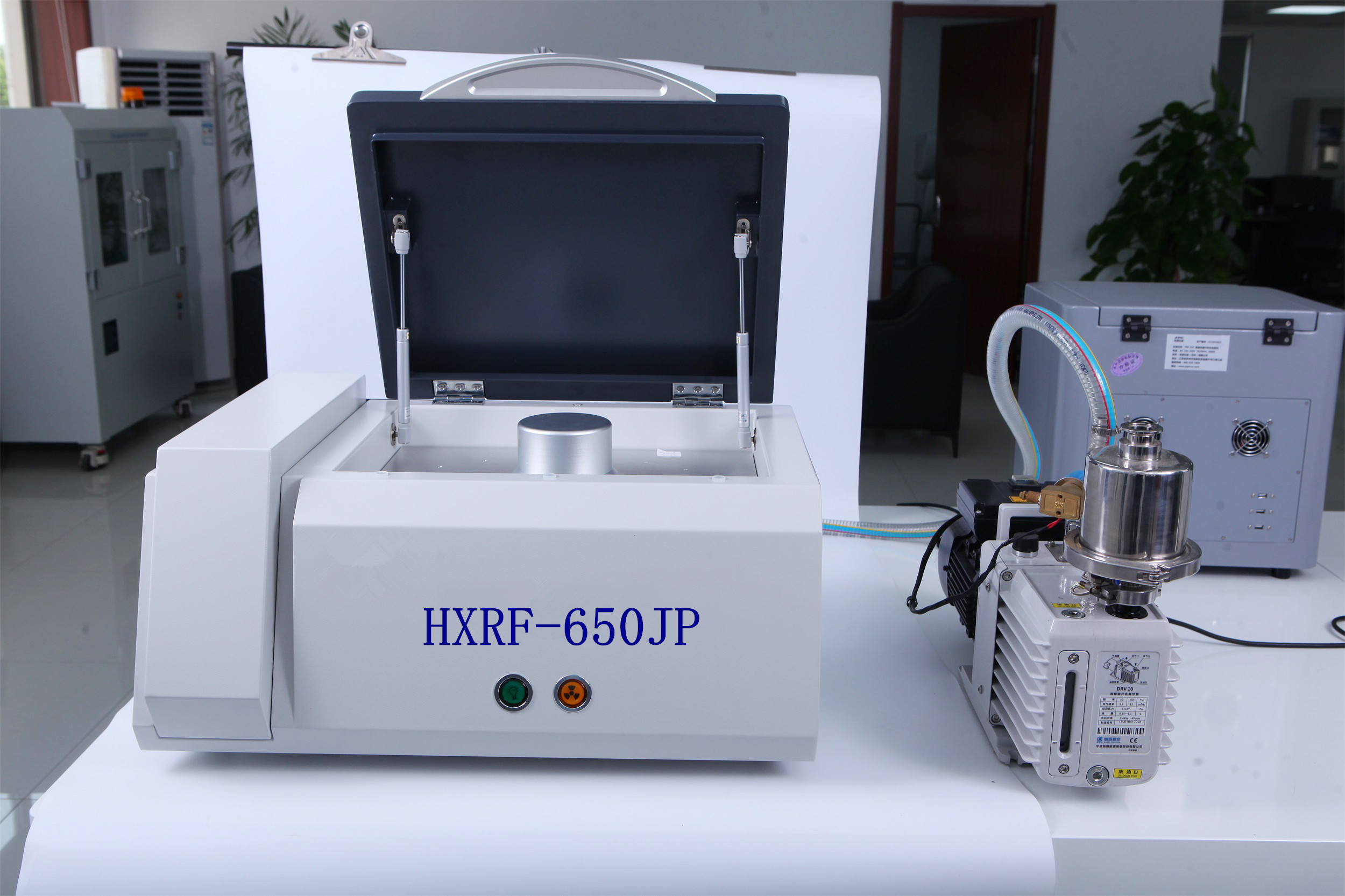

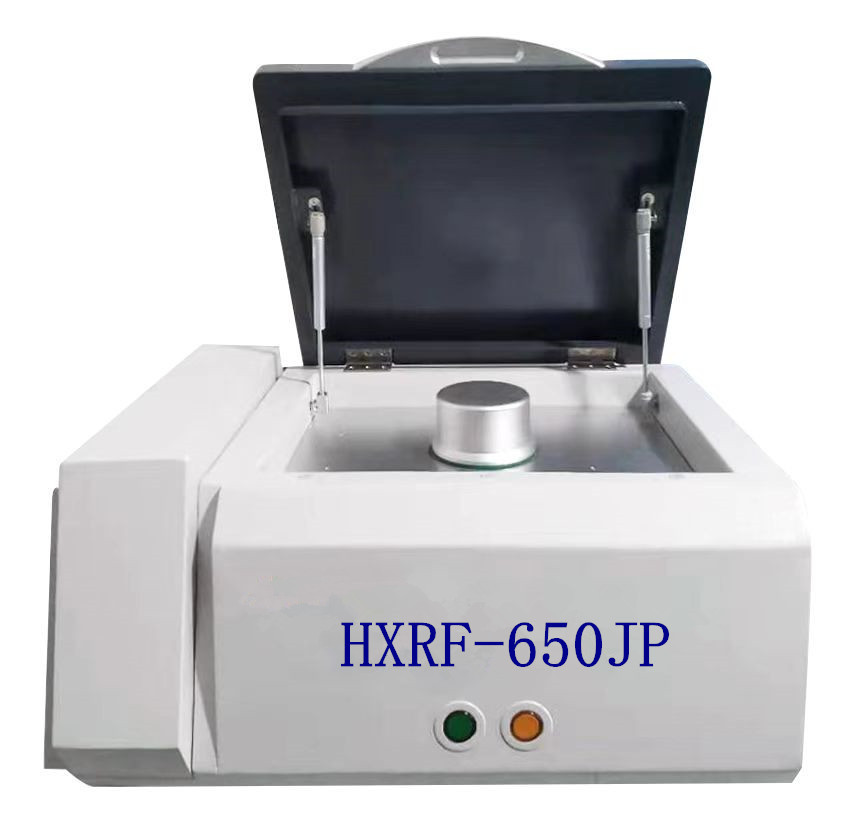

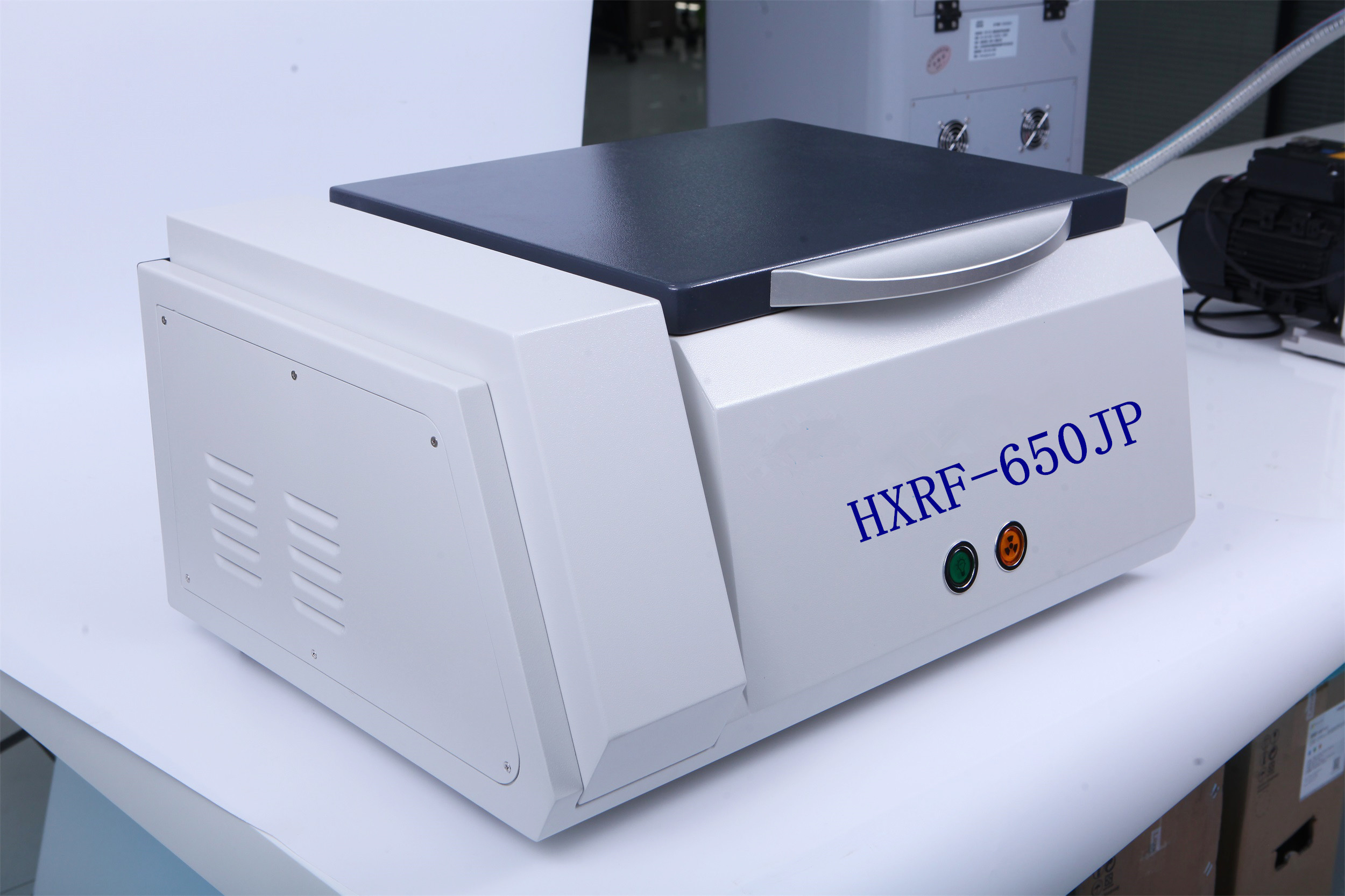

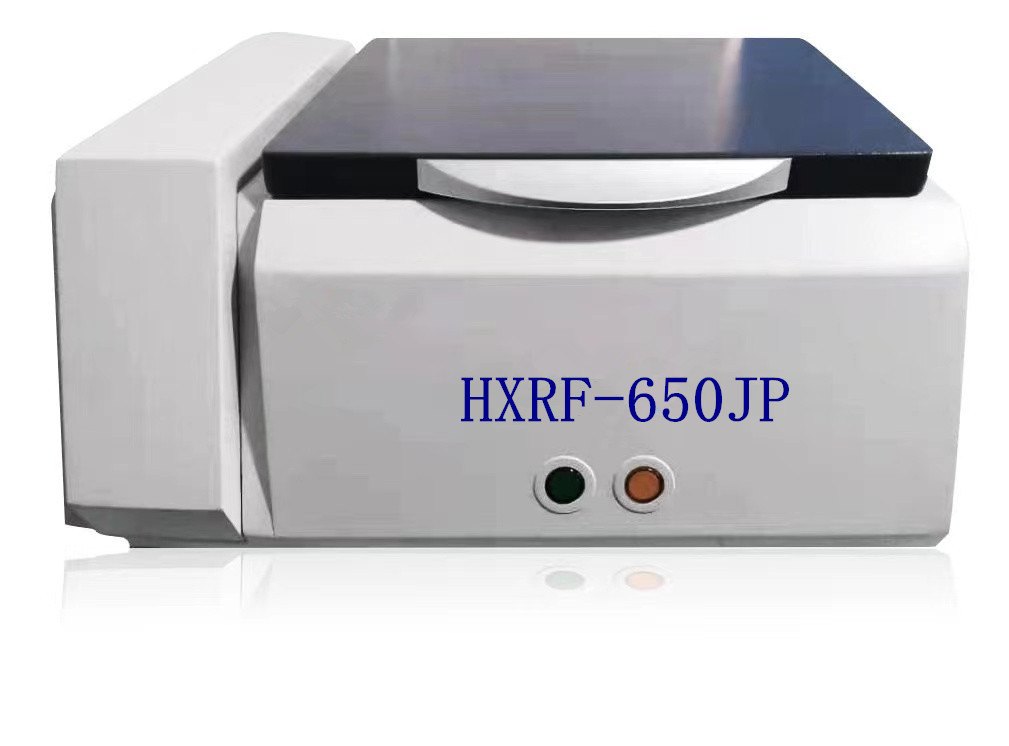

HXRF-650JP type X-ray fluorescence analyzer is a high-end analytical instrument designed for non-ferrous metals, ferrous metals, mineral processing and smelting, and geological industries.



Technical specification

Range of measured elements: from sodium (Na) to uranium (U)

Measuring concentration range: ppm -- 99.99% (different elements, different analysis range)

Measurement object state: powder, solid, liquid

Element analysis capability: Dozens of elements from sodium (Na) to uranium (U) can be measured at one time

Best resolution: 129eV±5eV

Best analysis accuracy: RSD≤0.1% (national standard sample)

Analysis time: Single test time is adjustable

Refrigeration mode: electric refrigeration, without any consumables

Large sample cavity size: 400mm x 340mm x 80mm

Vacuum sample chamber size: φ100mm×h75mm

Appearance Size: 700mmx510 mmx336mm

Working power supply: AC 220V ±5V, 50Hz

Working environment: indoor temperature 15 ~ 30℃; Relative humidity ≤80% (no condensation)

Machine weight: 56KG



Performance characteristics

Analysis efficiency: High speed, high precision and high efficiency. The self-developed analysis software can simultaneously complete the synchronous and accurate analysis of dozens of elements from 11 sodium (Na) to 92 uranium (U) within 1-120 seconds



Functional advantages:

1. Appearance design: generous and beautiful, durable, multiple safety protection mode.

2. Collimating filter system: collimating + multi-combination filter, software automatic switch, meet a variety of test applications.

3. SES signal processing system (digital multi-channel) independently developed is adopted to effectively improve the peak back to back ratio and make the measurement more accurate.

4. Multi-dimensional heat dissipation system: Optimize the integrated heat dissipation design to improve the heat dissipation performance of the whole machine and ensure the operation safety of the X-ray source

5. Radiation safety system: multiple anti-radiation leakage design, radiation protection level belongs to the highest of similar products

6. Vacuum system: Select the vacuum system, optimize the test environment, improve the analysis accuracy of magnesium, aluminum, silicon, phosphorus, sulfur and other light elements

7. Unique movement temperature monitoring technology ensures the safe and reliable operation of the ray source, effectively prolongs its service life and reduces the use cost

Hardware advantage: The whole set of core components is imported

1. Detector: The original Amptek silicon drift SDD probe from the United States, with the lowest resolution of 129eV±5eV, excellent energy linearity and energy resolution, peak-to-back ratio.

2. X-ray tube: maximum power 50W, tube voltage 5-50KV, tube current 0-1000uA; Long life X-ray tube.

3. High voltage power supply: maximum power 50 W, voltage 0-50 KV, current 0-1000uA. 8-hour stability ≤0.05%.

4. Signal processor: Adopt imported signal processor, adapt to high resolution and high count rate, self-tuning magnification, the maximum number: 4096.

Software advantage: Chinese version of X-ray fluorescence analysis software jointly developed by Danaher and our company, which integrates empirical coefficient method, theoretical α coefficient method, linear fitting, quadratic curve, strength correction, content correction and other analysis methods to fully ensure the accuracy of test data.





Instrument configuration

System standard configuration:

1. Digital multi-channel SDD detector

2. X-ray sources

3. High voltage power supply

4. Sex to noise ratio electronic circuit system

5. Optical path enhancement system

6. 8 collimation +5 filter

7. Digital multichannel analyzer

8. Vacuum pumping system

9. Branded inkjet printers

10. Branded computers

11. X fluorescence full element analysis software

12. Sample cup and fuse

13. Regulated power supply for spectrum (optional)



System selection:

1. Special Grinding machine for spectrum (optional)

2. Spectroscopic Fusion Machine (Optional)

3. Special Powder Making machine for Spectrum (optional)

4. Platinum Crucible for melting sample (optional)

5. Special Tablet press for spectrometer (optional)



Product application

HXRF-650JP spectrometer can analyze the following samples and elements (oxides) :



Sample type Element category
Sinter/pellet ore TFe,Si,Ca,Mg,Al,Mn,Ti,P,S,K,V Etc.
Blast furnace slag/converter slag TFe,Si,Ca,Mg,Al,Mn,Ti,P,S,K,V Etc.
Refining slag Al,Ca,Si,Mg,Fe,Ti Etc.
Premelted slag Ca,Mg,Al,Si,Fe,P,S Etc.
Calcium aluminate Si,Al,Fe,Ca,Mg Etc.
Calcium ferrite Fe,Al,Ca,Si,S,P Etc.
Manganese-rich slag Mn,Fe,P,S,Si,Al,Ca Etc.
Iron concentrate powder/iron ore TFe,Si,Ca,Mg,Al,Mn,Ti,P,S,K,V Etc.
Hematite/magnetite TFe,K,Na,S,P,Al,Si,Mg,Ca,Mn,Zn,Cu,Ti Etc.
Lead-zinc ore Pb,Zn,Ag,Cu,Sn,Fe,S,Cd,Mo,As Etc.
Manganese ore Mn,Si,P,S,Al,Ti,K,Zn,Ca,Mg Etc.
titanite Ti,Mn,Fe,Si,P,S,Al,K,Zn,Ca,V,Cu,Mg Etc.
Copper mine Mn,Fe,S,Cu,Pb,As,Au,Cd,Zn,Ag,Mg Etc.
chromite Fe,P,S,Al,Cr,Ca,Mg,Si Etc.
refractory

High silica clay Si,Al,Fe,Ca,Mg,K,Na,S,P Etc.

High alumina alumina Al,Fe,Ti,Na,K,Mn,Ca,Mg,Si,P Etc.

High magnesia magnesia Mg,Ca,Si,Al,Fe Etc.
corundum

White corundum

Al,Na,Si,Ca,Fe Etc.

Brown corundum

Al,Si,Ti,Fe Etc.

Black corundum

Al,Si,Ti,Fe Etc.

Chromic corundum

Al,Na,Cr,Fe Etc.

Zirconium corundum

Zr,Si,Al,Na,Fe,Ti,Ca,Mg,K Etc.
Cement raw/clinker Si,Al,Fe,Ca,Mg,K,Na, S,Cl- Etc.
limestone S,P,Al,Si,Fe,Ti,Mn,Sr,Ca,Mg Etc.
dolomite S,P,Al,Si,K,Na,Fe,Ti,Mn,Sr,Ca,Mg Etc.
wollastonite Si,Ca,Fe,Al,Ti,Mg Etc.
serpentine Mg,Si,K,Na,Ca,Fe,Ti,Mn,Al,S,P Etc.
mullite Al,Si,Fe,Ti,Ca,Mg,K,Na Etc.
Magnesia alumina spinel Al,Mg,Ca,Si,Na,Fe Etc.
fluorite Ca,P,S,Si,Al,Fe,Mg,Ti,Mn,K,Na Etc.
Coal gangue Si,Al,Fe,Ca,Mg,Ti,P,V Etc.
Quartz sand Zr,Si,Fe,P,S ,Al,Ti Etc.
rutile Ti,S ,P ,Fe,Nb,Ta,Cr,Sn Etc.
garnet Ca,Mg,Fe,Mn,Al,Cr Etc.
Pig iron Si,Mn,P,S,Ti,Cr,V Etc.
High manganese pig iron Fe,Mn,P,S,Si,Cr Etc.
Ferrosilicon alloy Al,Si,Ca,Na,Mg,P,S,Fe,Cr,Mn,Cu,Ba Etc.
Silicon manganese alloy Mn,P,S,Si Etc.
Silico-zirconium alloy Si,Ca,Al,Ba,ZR,Mn Etc.
Barium calcium Si,Al,Ba,Ca Etc.
Barium silicon calcium/calcium silicon/barium silicon Si,Ba,Ca,Ba ,Fe Etc.
Nickel iron Ni,Mn,Si,Cu,Co,Cr,V,S,P Etc.
Iron vanadium V,Mn,Si,P,S Etc.
ferrochrome Cr,Si,P,S,V,Fe,Mn,Ti Etc.
ferromanganese Mn,Si,P,S,Cr,Ni,V,Fe Etc.
Iron niobium Nb,Al,Si,S,P Etc.
Smelting lead Pb,Sb,Sn,Bi,Fe,Si,Ca,S Etc.
Electrolytic manganese Mn,S,P Etc.
Tin slag Sn,Fe,Si,Ca Etc.
Vanadium slag V,Mn,Cr,Ti,Ca,Si Etc.
glass Si,Al,Fe,Ca,Mg,K,Na Etc.
Fly ash (thermal power Plant) Si,Al,Fe,Ca,Ti,Mg,K,Na,S,Mn Etc.
Spheroidizing agent (rare earth magnesium silicon alloy) Mg,RE,Si,Ca,Al Etc.
inoculant Si,Ba,Ca,Al Etc.
Creep agent Mg ,Re ,Ca ,Si ,Al Etc.
Covering agent Ca ,Si,Mg,Al,Fe Etc.
Tube mould powder Si,Ca,Al,Ba,ZR,Mn Etc.
Slag remover Ca ,Si,Al Etc.
Sintered flux Si,Ti,Ca,Mg ,Al,Mn,S,P Etc.
Brazing powder Ti,Zr,Ni,Cu,Ag,Zn,Sn,Si,Mn,Ni,Cr,P Etc.
alumina Si,Fe,Ca,Mg Etc.
Industrial silicon Al,Ca,Fe,Ti,Mn,Ni Etc.
SCR denitration catalyst Ca,Na,K,As,W,V Etc.
Heavy metals in soil Pb,As,Cd,Hg,Cu,Ni,Zn,Cr Etc.
