Automatic Digital Micro Vickers Hardness Tester Vickers Hardness Test Equipmen ASTM E92 Knoop Hardness Test

  • Automatic Digital Micro Vickers Hardness Tester Vickers Hardness Test Equipmen ASTM E92 Knoop Hardness Test
  • Automatic Digital Micro Vickers Hardness Tester Vickers Hardness Test Equipmen ASTM E92 Knoop Hardness Test
Place of Origin Beijing
Brand Name HUATEC
Certification ISO, CE, GOST
Model Number HV-1DT
Minimum Order Quantity 1pcs
Packaging Details Standard export package
Delivery Time 1-4days
Payment Terms T/T, Paypal, Western Union
Supply Ability 500pcs per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Standard Conformed To GB/T4340，ASTM E92 Min Measuring Unit 0.01µm
Data Output 8’LCD Screen Display,60 Kinds Of Test Results Storage, Inside Printer, RS-232 Hardness Measuring Range 8~2900HV
Method Of Testing Force Applied Automatic (loading, Dwelling , Unloading) Test Microscope Magnification 400X(Measuring)，100X（observation）
Test Force Dwell Time 0-60s
Highlight

vickers hardness machine

,

digital micro hardness tester
Leave a Message
Product Description

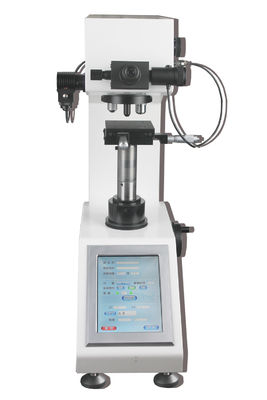

Automatic Digital Micro Vickers Hardness Tester Vickers Hardness Test Equipmen ASTM E92 Knoop Hardness Test

Automatic Digital Micro Vickers Hardness Tester Vickers Hardness Test Equipmen ASTM E92 Knoop Hardness Test 0

Main Features:

Model HV-1DT Digital Micro Vickers hardness tester with large 8’ LCD screen display, use the menu interface type structure, can be in operation panel choose hardness HV or HK (option), test of hardness value, automatic input, automatic display. For all kinds of hardness value mutual conversion and the testing result is automatic storage, processing, printing with RS-232 interface, and computer online. The brightness of light source is adjustable , and instrument can have a build-in camera, image will be more clear. Hardness value error can be modified through software input; hardness value more accurate meets the requirement.

Model HV-1DT Digital Micro hardness tester with digital display when the pressure head and the objective to switch to each other, the test point to be automatic positioning precision.



HV-1DT can be used as knoop hardness test machine equipped with Knoop indenter.



Technical Specifications:

Model HV-1DT
Test force 10gf (0.098N),25gf (0.245N),50gf (0.49N),100gf (0.98N), 200gf (1.96N),300gf (2.94N),500gf(4.9N),1Kgf (9.8N)
Standard Conformed to GB/T4340,ASTM E92
Min measuring unit 0.01µm
Data output 8’LCD screen display,60 kinds of test results storage, Inside Printer, RS-232
Conversion Scale HRA,HRB,HRC,HRD,HRF,HV,HK,HBW,HR15N,HR30N,HR45N,HR15T,HR30T,HR45T
Hardness measuring range 8~2900HV

method of testing

force applied

 Automatic (loading, Dwelling , unloading)

Test microscope

magnification

 400X(Measuring),100X(observation)
Test force dwell time 0-60s
Maximum specimen height 160mm
Distance from the center to the outer wall of the indenter 135mm
X-Y test sets Dimension:100*100mm Maximum Movement:25*25mm
Dimensions 600*200*640mm
Net Weight 50Kg
Power supply AC220V+5%,50-60Hz


Operation interface:

Automatic Digital Micro Vickers Hardness Tester Vickers Hardness Test Equipmen ASTM E92 Knoop Hardness Test 1

                                                                   Calibration operation



Automatic Digital Micro Vickers Hardness Tester Vickers Hardness Test Equipmen ASTM E92 Knoop Hardness Test 2

                                                                  Data storage



Automatic Digital Micro Vickers Hardness Tester Vickers Hardness Test Equipmen ASTM E92 Knoop Hardness Test 3







Standard Accessories:

Item Quantity Item Quantity
Axle weight 1 Weight 6
10X eyepiece test 1

Vickers hardness block

(high block, low block)

 1
Cross test sets 1 Adjusting screw 4
Level 1 Spare fuse(2A) 2
Power line 1 Product Manual 1






Optional Accessories:

Filament clamping testing table 1 Flat clamping testing table 1
Thin Specimen Testing Table 1 Test software 1
Computer 1 Knoop indenter 1
