300 Degree Celsius Paint Coating Thickness Gauge High Temperature Spray Layer Paint Layer

Place of Origin	Beijing
Brand Name	HUATEC
Certification	ISO CE
Model Number	TG-6100
Minimum Order Quantity	1
Packaging Details	Standard export package
Delivery Time	1-4days
Supply Ability	500 per months

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

Material	ABS	Accuracy	±(1+2% H) Um
Display Value	Display Both Thickness And Weight Measurements Directly	Interface	Mini-USB Interface For Communication
Online Testing	Support Online Measurement	Testing Range	0 ~ 3000 Um
Magnetic Induction Principle	Non-magnetic Coating On Magnetic Metal Substrate	Density Range	0.01 ~ 99.99 G/cm3
Testing Times	3 Times Per Second	Display	FSTN LCD Display With Backlight
Display Content	Coating Thickness Value, Coating Weight Value, Density Value, Time, Stability, Battery, Measuring Mode, Etc	Min. Radius Of Curvature	Convex 1.5mm
Min. Radius Of Area	Φ7mm	Contact Surface Temp.（°C）	0-300°C
Highlight	spray layer paint coating thickness gauge , high temperature paint coating thickness gauge , 300 degree celsius paint thickness gauge

Leave a Message

Product Description

300 Degree Celsius HIgh Temperature Spray Layer Paint Layer Paint Coating Thickness Gauge

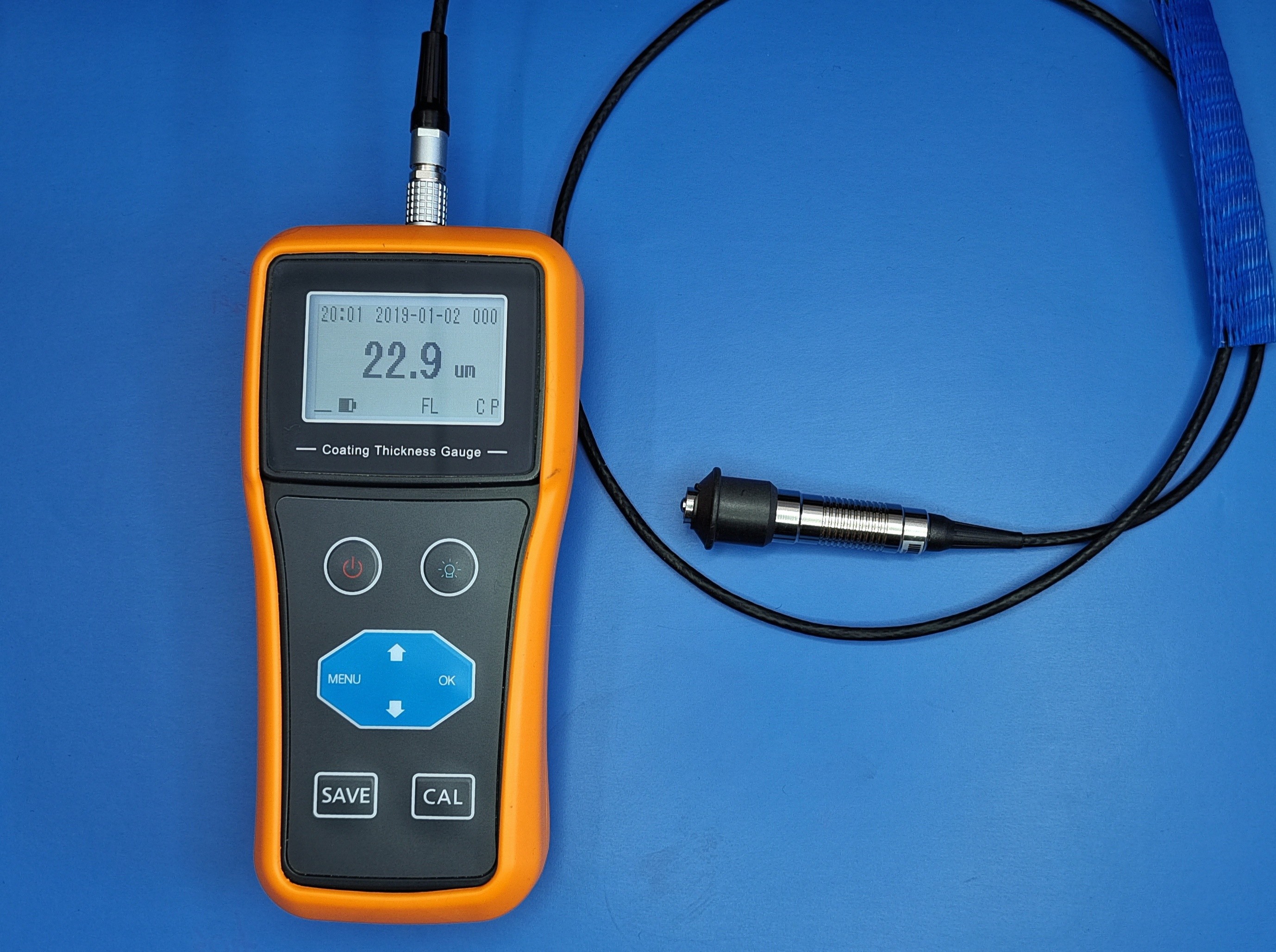

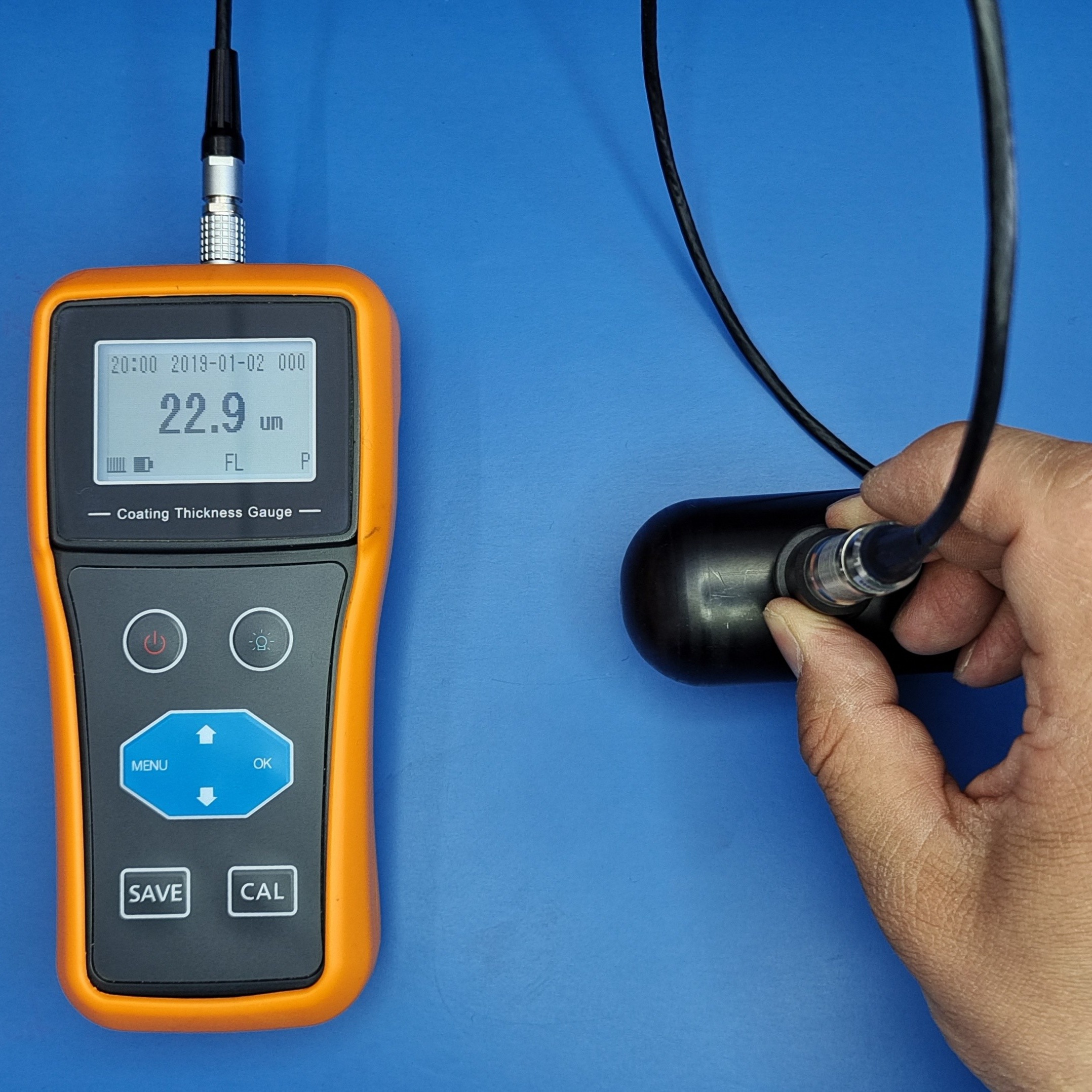

TG-6100 with high temperature probe FH is a portable coating thickness gauge, which is designed for non-destructive, fast and precise coating thickness measurement for any surface with high temperature upto 300 degree celsius. The principal applications lie in the field of corrosion protection. It is ideal for manufactures and their customers, for offices and specialist advisers, for paint shops and electroplaters, for the chemical, automobile, shipbuilding and aircraft industries and for light and heavy engineering.

300 Degree Celsius Paint Coating Thickness Gauge High Temperature Spray Layer Paint Layer 0

Features:

High precision sample chip and dedicated temperature compensation model used for precision measurement
Efficient filtering algorithm used for Anti-electromagnetic interference
Precise coating thickness measurement for any surface with high temperature upto 300 degree celsius
Probe can be re-matched with the machine after wear
Magnetic induction principle for Non-magnetic coating on magnetic metal substrate
Mini-USB interface for communication
Support Online measurement
Host Software upgradable

Main Functions:

Single Point Measurement, Scan, Differential and Alarm Mode support
Three calibration mode used for system error auto correction
Thickness and time information can be stored completely
Stability indicator for measuring status monitoring
Battery indicator for battery quantity monitoring
Can test on high temperature spray layer, paint layer

Technical Parameters

Probe Type	F (Magnetic induction)
Usage	Non-magnetic coating on magnetic metal substrate
Measure Range	0 ~ 3000 um
Min. Radius of Curvature	Bulge 1.5 mm
Min. Radius of Area	Φ7 mm
Critical Thickness of Plate	0.5 mm

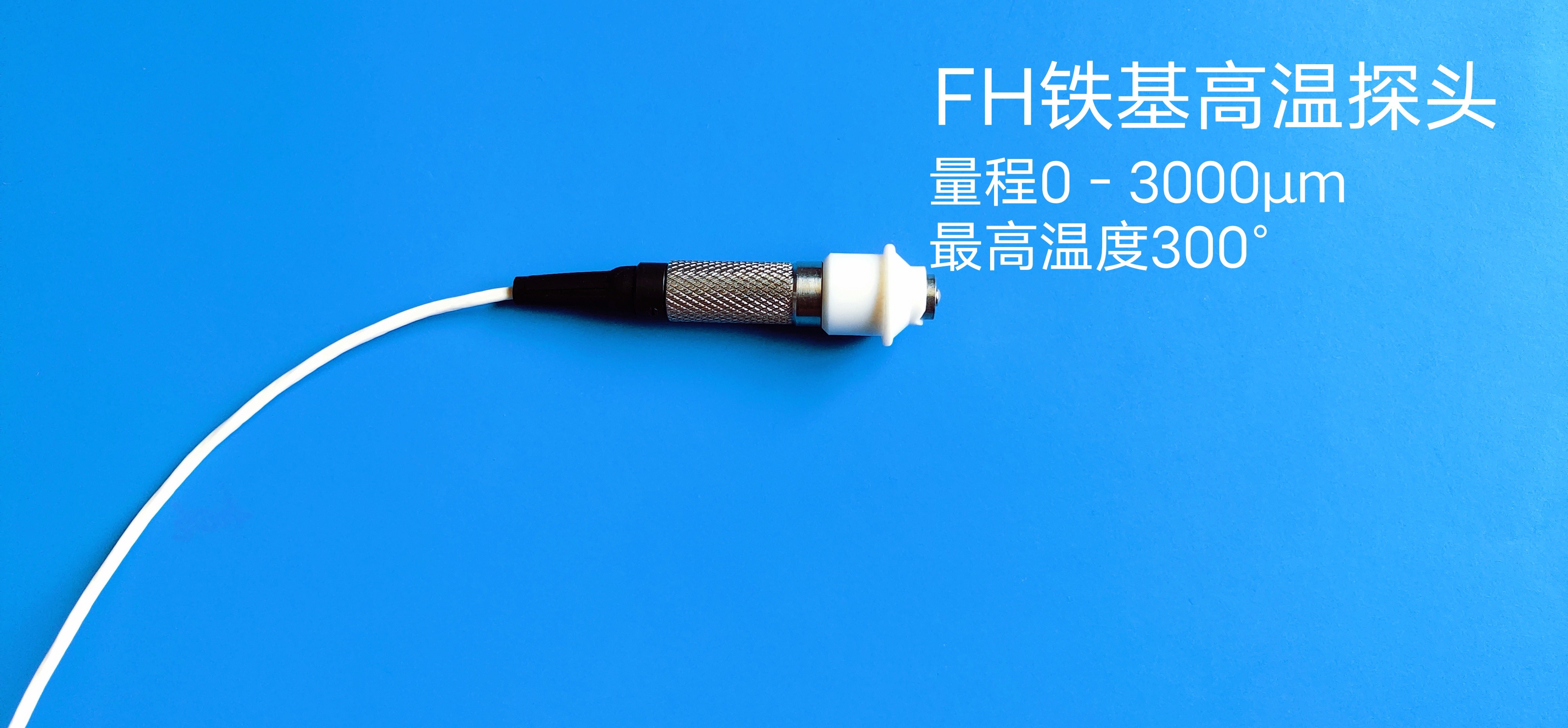

Contact surface temp.(°C)	300°C with probe model FH
Accuracy	Zero / One-Point Calibration
	Two-Point Calibration
	Basic Calibration
Resolution	0.1 um(0 ~ 99.9 um),1um(100 ~ 1500 um)
Measuring Period	3 times per second
Calibration Mode	Zero, One-Point, Two-Point and Basic Calibration
Measuring Mode	Single point, scan mode, differential mode, alarm mode
Display	English / Chinese selectable, FSTN LCD Display with backlight
Display Content	Coating Thickness Value, Time, Stability, Battery, Measuring Mode, etc.
Storage	500 measurements, including time, probe type, etc.
Communication	Mini-USB interface, virtual serial port protocol, support online measurement
Print	Optional portable thermal printers
Power Supply	3 * AAA alkaline batteries for 100 hours usage (close backlight)
Power off	Timeout power off, and low battery power off
Temperature	Usage: -10 ~ 50 °C, Store: -30 ~ 60 °C
Size	150mm * 70mm * 30mm
Material	ABS and PC alloy
Weight	180g

Probes model guide

Probe type		F (Magnetic)						N (Non-magnetic)
Usage		Non-magnetic coating on magnetic metal substrate						Non-conductive coating on non-magnetic metal substrate
Probe model		FM	FL	FX	FT-500	FS	FH	NM	NL
Measuring range(μm)		0 ~ 1500	0 ~ 3000	0~10000	0 ~ 500	0 ~ 500	0 ~ 3000	0 ~ 1500	0 ~ 3000
Measuring accuracy(μm)	Basic calibration	±(0.5+1% H)	±(1+2% H)	±(1+3% H)	±(0.5+1% H)	±(0.5+1% H)	±(1+2% H)	±(0.5+1% H)	±(1+2% H)
Measuring accuracy(μm)	Zero calibration	±(1+2% H)	±(1+3% H)	±(2+5% H)	±(1+2% H)	±(1+2% H)	±(1+3% H)	±(1+2% H)	±(1+3% H)
Min. Radius of Curvature		Convex 1.5mm	Convex 1.5mm	Convex 10mm	Convex 1.5mm	Convex 1mm	Convex 1.5mm	Convex 3mm	Convex 6mm
Min. Radius of Area		Φ7mm	Φ7mm	Φ40mm	Φ3mm	Φ3mm	Φ7mm	Φ5mm	Φ7mm
Critical Thickness of Plate		0.5mm	0.5mm	2mm	0.3 mm	0.2 mm	0.5 mm	0.3 mm	1 mm
Contact surface temp.(°C)		0 ~ 50	0 ~ 50	0 ~ 50	0 ~ 50	0 ~ 50	0 ~ 300	0 ~ 50	0 ~ 50
Measuring direction		down	down	down	right angle	down	down	down	down
Main testing material		Paint layer, spray layer	Paint layer, spray layer	Anti-corrosion layer, Fire protection layer	A narrow area inside the pipe	Small parts, fasteners,Spray layer, paint layer	300℃Spray layer, paint layer	Oxide layer, spray layer,Copper tin plating, chrome plating	Spray layer, paint layer
Probe description		Standard probe	Thicker probe	Thicker probe	Right angle probe	Mini probe	High temp. probe	Normal probe	Thicker probe
